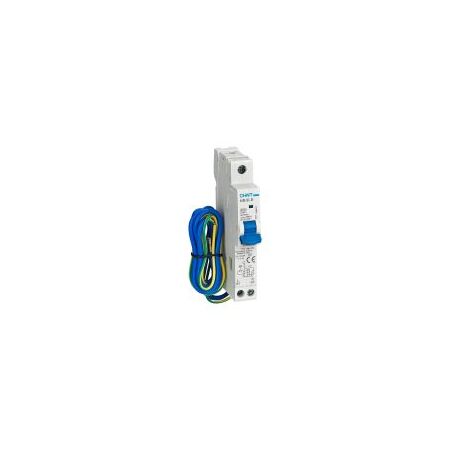

RCBO 1P+N C Curve 6A 30mA Type A 6kA NB3LE Chint

BRAND: CABAC
SKU: 392200
$52.80 List price: $70.30
+ −
30 Days Return Electricians Unlock Trade Access
Chint NB3LE RCBO features 1P+N 6A C curve, 6kA breaking capacity, 30mA Type A earth leakage protection, DIN rail mount. Ideal for final subcircuits.

Alternatively Known As: 6A Type A RCBO, 1P+N Safety Switch, Residual Current Circuit Breaker with Overcurrent Protection

Technical Specifications
  • Rated Current: 6 A
  • Poles: 1P+N
  • Tripping Curve: C curve, 5–10 × In
  • Earth Leakage Type: Type A
  • Rated Residual Operating Current: 30 mA
  • Rated Voltage: 240 V AC
  • Rated Frequency: 50/60 Hz
  • Rated Short-Circuit Capacity: 6 kA
  • Residual Making and Breaking Capacity: 2 kA
  • Breaking Time at Rated Residual Current: Less than 0.1 seconds
  • Rated Impulse Withstand Voltage: 4 kV
  • Rated Insulation Voltage: 500 V
  • Mounting: 35 mm DIN rail with fast clip-on device
  • Protection Function: Overload, short-circuit and earth leakage protection
  • Compliance: IEC/EN 61009-1
  • Dimensions (H x L x W): 110mm x 76.5mm x 18mm
  • Weight: 0.14 kg
Key Features
  • Combines overcurrent and residual current protection in one compact device
  • Type A detection responds to AC and pulsating DC leakage currents
  • C-curve operation suits mixed resistive and inductive loads with moderate inrush current
  • 1P+N configuration switches and protects the active and neutral conductors
  • 6 kA short-circuit breaking capacity
  • 30 mA sensitivity for additional personal protection
  • DIN rail mounting with fast clip-on installation
  • Contact position indicator for easier inspection and maintenance
Professional Installation Requirements
  • Installation, testing and replacement must be performed by a licensed electrician in accordance with AS/NZS 3000 and applicable electrical safety requirements.
Applications
  • Final subcircuits in residential switchboards
  • Lighting and general power circuits
  • Small commercial distribution boards
  • Mixed resistive and inductive loads with moderate starting current
  • Protection of circuits requiring combined overcurrent and earth leakage protection
Standards & Compliance
  • AS/NZS 61009.1:2015 for residual current circuit-breakers with integral overcurrent protection
  • Product family SAA approval recorded to AS/NZS 61009.1:2015
Environmental Benefits
  • Combines two protection functions in one device, reducing switchboard space and material use
  • Long mechanical and electrical service life can reduce replacement waste
  • Compact DIN rail format supports efficient distribution-board design
  • Electrical protection can help reduce equipment damage and premature replacement
Warranty Information

CHINT's general warranty policy provides 27 months from the date of manufacture for other low-voltage apparatus sold through authorised sales channels, subject to the applicable terms and conditions.

Available Now

Available through authorised CHINT distributors in Australia.
