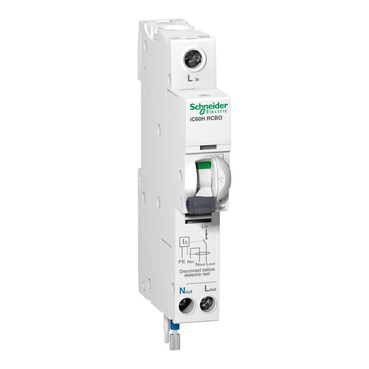

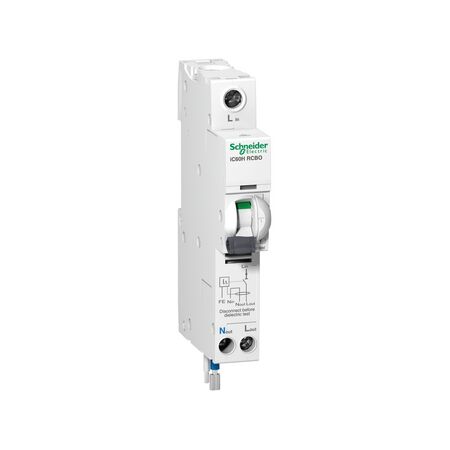

RCBO 20A 10KA 240V 30mA | 2 Pole Design | Earth Leakage & Overcurrent Protection | @Pack of 1 | by Clipsal
The RCBO 20A 10KA 240V 30mA is a dual-function device combining a residual current device (RCD) and miniature circuit breaker (MCB) for enhanced electrical safety. Ideal for residential and commercial applications, it protects against earth leakage and overcurrent, ensuring reliable operation in lighting and power circuits. With a trip-free mechanism and easy DIN rail installation, this unit is a must-have for any electrical distribution board.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: RCBO 20A 10KA 240V 30mA | 2 Pole Design | Earth Leakage & Overcurrent Protection | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHA9D11820
Alternatively Known As: 20A RCBO, Clipsal RCBO, Residual Current Circuit Breaker with Overcurrent, SCHA9D11820, 2 Pole RCBO, 20A Safety Switch
Technical Specifications
- Rated current: 20A
- Breaking capacity: 10kA
- Rated voltage: 240V AC
- Residual current sensitivity: 30mA
- Number of poles: 2
- Mounting: DIN rail
- Trip type: Type A
- Frequency: 50Hz
- Operating temperature: -25°C to +40°C
- Dimensions (H x L x W): 85mm x 75mm x 36mm
- Weight: 0.25 kg
Key Features
- Combines residual current device (RCD) and miniature circuit breaker (MCB) in one unit
- Rated current: 20A
- Breaking capacity: 10kA
- Rated voltage: 240V AC
- Residual current sensitivity: 30mA
- 2 module width for easy installation
- Provides protection against earth leakage, overload, and short circuit
- Trip-free mechanism ensures safety even if the toggle is held in ON position
Professional Installation Requirements
- Must be installed by a licensed electrician in accordance with AS/NZS 3000 and local regulations.
Applications
- Residential and commercial electrical distribution boards
- Protection of final sub-circuits against earth leakage and overcurrent
- Suitable for lighting and power circuits
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 61009 – Residual current operated circuit-breakers with integral overcurrent protection
Environmental Benefits
- Enhances electrical safety, reducing risk of fire and electrical hazards
- Long operational life reduces replacement frequency and waste
Warranty Information
12 months manufacturer's warranty.
Available Now
Available for immediate purchase. Ideal for use in residential and commercial switchboards to provide combined earth leakage and overcurrent protection.
