Trade Discount 17%

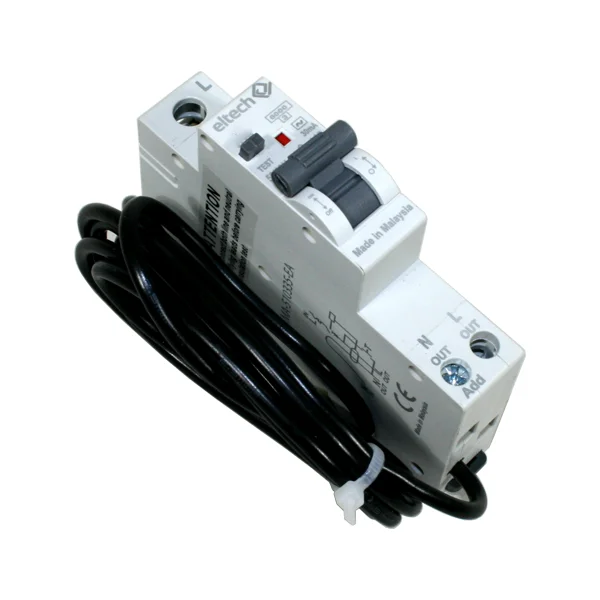

RCBO 25A 1 Pole + Neutral | 10kA Breaking Capacity | 30mA A Type Protection by Eltech
RCBO 25A 1 pole + neutral with 10kA breaking capacity and 30mA A type sensitivity—ideal for residential and commercial electrical systems. Built for safety and compliance, it provides combined overcurrent and earth leakage protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: RCBO 25A 1 pole + Neutral 10kA 30mA – A type
Brand: Eltech
SKU: RCBO102530AH
Alternatively Known As: Residual Current Breaker with Overcurrent, RCBO 25A, 1P+N RCBO, 30mA Earth Leakage Circuit Breaker
Technical Specifications
- Rated current: 25A
- Residual current: 30mA (A type)
- Breaking capacity: 10kA
- Pole configuration: 1 pole + neutral
- Type: A (sensitive to AC and pulsating DC residual currents)
- Dimensions (H x L x W): 85mm x 70mm x 18mm
- Weight: 0.2 kg
Key Features
- Rated current: 25A
- Residual current rating: 30mA - A type
- Breaking capacity: 10kA
- 1 pole plus neutral configuration
- Provides combined overcurrent and earth leakage protection
Professional Installation Requirements
- Must be installed by a licensed electrician to ensure compliance with electrical safety standards and proper operation.
Applications
- Residential electrical distribution boards
- Commercial power distribution panels
- Industrial circuit protection systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3123 – Industrial Plugs and Socket-Outlets
Environmental Benefits
- Enhances electrical safety reducing risk of electrical fires and faults
- Supports energy efficiency by preventing electrical faults and power loss
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Eltech RCBO 25A 1 Pole + Neutral 10kA 30mA A Type is available now for immediate purchase. Ideal for enhancing electrical safety in residential, commercial, and industrial power distribution systems.
