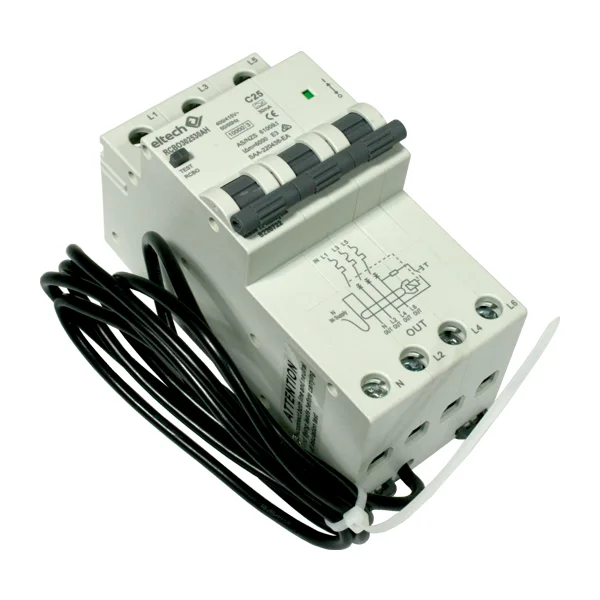

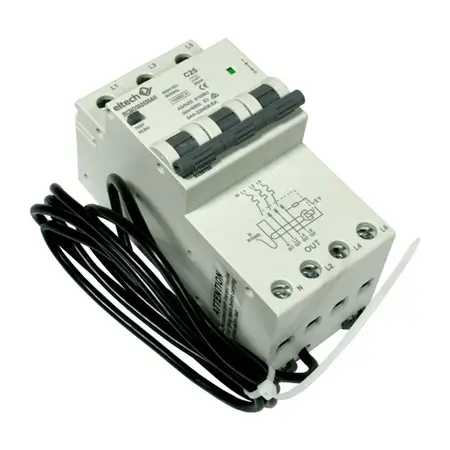

RCBO 25A 3 Pole + Neutral | 10kA Breaking Capacity | 30mA Sensitivity | Type A by Eltech
RCBO 25A 3 pole + neutral with 10kA breaking capacity and 30mA sensitivity—ideal for residential and commercial circuit protection. Built for safety compliance, it quickly disconnects faulty circuits to prevent electrical fires.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: RCBO 25A 3 pole + Neutral 10kA 30mA – A type
Brand: Eltech
SKU: RCBO302530AH
Alternatively Known As: Residual Current Breaker with Overcurrent, 25A RCBO, 3 Pole RCBO, Type A RCD Circuit Breaker
Technical Specifications
- Rated Current: 25A
- Poles: 3 pole + neutral
- Residual Current Sensitivity: 30mA
- Type: A (AC and pulsating DC detection)
- Breaking Capacity: 10kA
- Mounting: DIN rail
- Dimensions (H x L x W): 85mm x 70mm x 54mm
- Weight: 0.3 kg
Key Features
- 25 Ampere rated current
- 3 pole plus neutral configuration
- Residual Current Device (RCD) with 30mA sensitivity
- Type A RCD for detection of AC and pulsating DC residual currents
- 10kA short circuit breaking capacity
Professional Installation Requirements
- Must be installed by a licensed electrician to ensure compliance with electrical safety standards.
Applications
- Residential electrical distribution boards
- Commercial power distribution panels
- Industrial circuit protection systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Helps prevent electrical fires and reduces energy waste by quickly disconnecting faulty circuits.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Eltech RCBO 25A 3 Pole + Neutral 10kA 30mA A Type is available now for immediate purchase. Ideal for circuit protection in residential, commercial, and industrial power distribution systems.
