RCBO 2P Circuit Breaker 40A | 6kA Breaking Capacity | 230V a.c. | 30mA Protection by Legrand
RCBO 2P circuit breaker with 40A rated current and 6kA breaking capacity—ideal for residential and commercial electrical safety. Built for 230V a.c. applications, with 30mA residual current protection and compact design.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

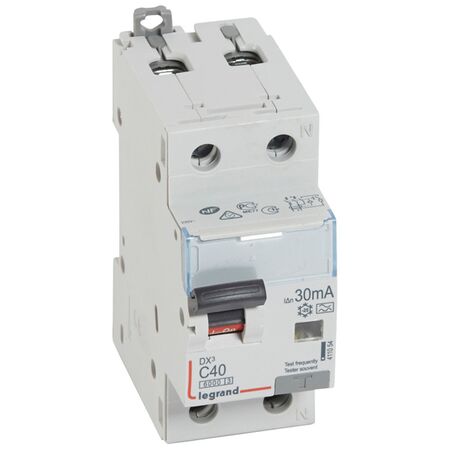

Product Name/Title: DX³ - RCBO 2P 6kA - A Type 30mA 230V a.c. - neutral on right hand side 1P+N 40A 2 module
Brand: Legrand
SKU: 411054
Alternatively Known As: RCBO, 2P Circuit Breaker, Residual Current Circuit Breaker
Technical Specifications
- Rated Current: 40A
- Type: A
- Breaking Capacity: 6kA
- Voltage: 230V a.c.
- Number of Poles: 2
- Dimensions (H x L x W): 85mm x 70mm x 36mm
- Weight: 1.5 kg
Key Features
- 30mA residual current protection
- 2 pole circuit breaker with neutral on the right
- Suitable for 230V a.c. applications
- 6kA breaking capacity
Professional Installation Requirements
- Installation should be performed by a licensed electrician to meet safety standards.
Applications
- Residential: Homes, apartments, and small buildings
- Commercial: Offices, retail spaces, and hospitality
Standards & Compliance
- Complies with AS/NZS 61009 for electrical safety.
Environmental Benefits
- Helps prevent electrical accidents and minimizes power outages.
Warranty Information
5 years warranty against manufacturing defects.
Available Now
The Legrand DX³ RCBO is available now for immediate purchase. Ideal for ensuring electrical safety in residential and commercial applications.
