RCBO 32A 1 Pole + Neutral | 10kA Breaking Capacity | 30mA Sensitivity | A Type by Eltech
RCBO 32A with 10kA breaking capacity and 30mA A type sensitivity—ideal for residential and commercial electrical systems. Built for safety and compliance, it protects against electrical faults and enhances system reliability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

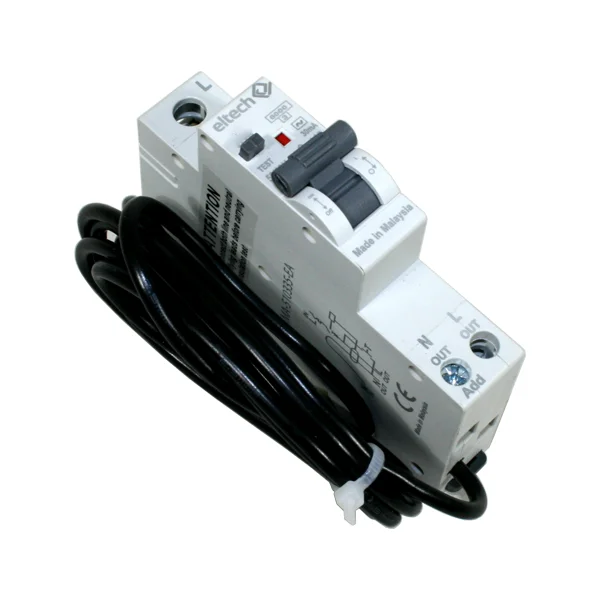

Product Name/Title: RCBO 32A 1 pole + Neutral 10kA 30mA – A type
Brand: Eltech
SKU: RCBO103230AH
Alternatively Known As: Residual Current Breaker with Overcurrent Protection, RCBO 32A 30mA A Type, 1 Pole Neutral RCBO
Technical Specifications
- Rated Current: 32A
- Residual Current: 30mA (A Type)
- Breaking Capacity: 10kA
- Poles: 1 Pole + Neutral
- Type: A (sensitive to AC and pulsating DC residual currents)
- Dimensions (H x L x W): 85mm x 70mm x 18mm
- Weight: 0.2 kg
Key Features
- 32 Ampere rated current
- 30mA residual current sensitivity - A type
- 10kA short circuit breaking capacity
- 1 pole plus neutral configuration
Professional Installation Requirements
- Installation must be performed by a licensed electrician to ensure compliance with electrical safety standards.
Applications
- Residential electrical distribution boards
- Commercial power distribution panels
- Industrial circuit protection systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enhances electrical safety reducing risk of electrical fires and faults
- Supports energy-efficient electrical system protection
Warranty Information
Standard manufacturer warranty applies. Please refer to Eltech for specific warranty terms.
Available Now
The Eltech RCBO 32A 1 Pole + Neutral 10kA 30mA – A Type is available now for immediate purchase. Ideal for enhancing electrical safety in residential, commercial, and industrial power distribution systems.
