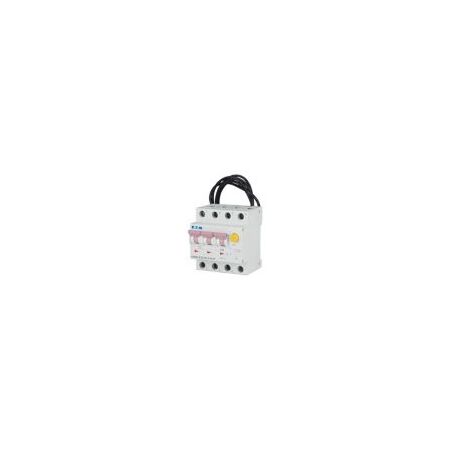

RCBO 32A 3-Pole Type C | 30mA Sensitivity | 10kA Switching Capacity | IP20 by Eaton
This 32A 3-pole RCBO with Type C tripping is designed for residential and commercial switchgear applications. Featuring 30mA fault current sensitivity and a 10kA rated switching capacity, it ensures safety and reliability in electrical installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: RCBO 32A 3-Pole Type C | 30mA Sensitivity | 10kA Switching Capacity | IP20 by Eaton
Brand: Eaton
SKU: Y7-169646
Alternatively Known As: RCBO 32A 3p Type C, Residual Current Breaker with Overcurrent Protection, Eaton xPole mRB64/M4, 3-pole RCBO, Type A RCBO
Technical Specifications
- Amperage Rating: 32 A
- Voltage Rating: 230 V AC
- Surge Current Capacity: 250 kA
- Rated Switching Capacity: 10 kA
- Tripping Characteristic: C (Non-delayed)
- Fault Current Rating: 0.03 A (30mA)
- Number of Poles: 3
- Rated Operational Voltage (Ue) Max: 415 V
- Rated Impulse Withstand Voltage (Uimp): 4 kV
- Degree of Protection: IP20
- Operating Ambient Temperature: -25 °C to 40 °C
- Connectable Conductor Cross Section: 1 mm² to 25 mm² (solid and multi-wired)
- Release Characteristic: C
- Sensitivity Type: Type A, pulse-current sensitive
- Frequency Rating: 50 Hz
- Mounting Method: DIN rail
- Pollution Degree: 2
- Overvoltage Category: III
- Equipment Heat Dissipation, Current-Dependent: 12.8 W
- Dimensions (H x L x W): 75mm x 86mm x 73mm
- Weight: 0.496 kg
Key Features
- Residual-current circuit breaker with overcurrent protection
- 32 A amperage rating
- 30mA fault current sensitivity
- MCB trip type C for non-delayed tripping
- 3-pole configuration
- Type A pulse-current sensitive leakage current
- Rated switching capacity of 10 kA
- DIN rail mounting
- IP20 degree of protection
- Operating ambient temperature range from -25 °C to 40 °C
Professional Installation Requirements
- Professional installation by a qualified electrician is required to ensure compliance with electrical safety standards and proper operation.
Applications
- Switchgear for residential applications
- Switchgear for commercial applications
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Helps prevent electrical fires and faults, enhancing safety and reducing environmental damage.
- Complies with RoHS, ensuring restriction of hazardous substances.
Warranty Information
Standard Eaton warranty applies; please refer to Eaton's official warranty policy for details.
Available Now
The Eaton Moeller series xPole mRB64/M4 RCBO 32A 3p Type C is available for immediate purchase, ideal for residential and commercial electrical switchgear applications.
