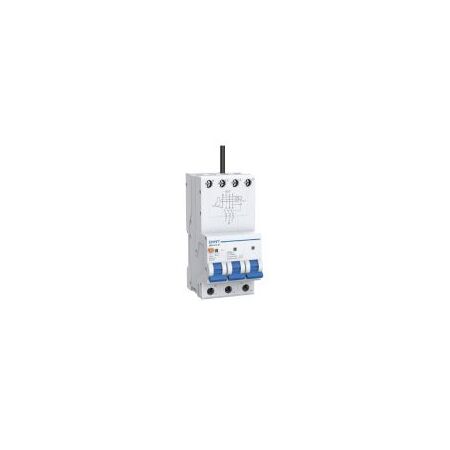

RCBO 3P+N 25A C Curve 30mA Type A 10kA NB3LEU Chint

BRAND: CABAC
SKU: 481359
$301.10 List price: $401.50
+ −
30 Days Return Electricians Unlock Trade Access
Chint NB3LEU RCBO 3P+N C25 features 30mA Type A earth leakage protection, 10kA breaking capacity, and C curve to IEC/EN 61009-1. Ideal for final subcircuits.

Alternatively Known As: Three-Phase RCBO, 3P+N Residual Current Circuit Breaker, Earth Leakage Circuit Breaker, Type A Safety Switch

Technical Specifications
  • Rated Current: 25A
  • Configuration: 3P+N, four-pole device with three protected poles
  • Rated Voltage: 400/415V AC
  • Residual Current Sensitivity: 30mA
  • Leakage Detection Type: Type A
  • Tripping Curve: C curve, 5–10 x In
  • Rated Short-Circuit Capacity: 10kA
  • Residual Making and Breaking Capacity: 6kA
  • Break Time at Rated Residual Current: ≤0.1 seconds
  • Rated Frequency: 50/60Hz
  • Rated Impulse Withstand Voltage: 4kV
  • Rated Insulation Voltage: 500V
  • Protection Degree: IP20
  • Terminal Capacity: Up to 25mm² cable
  • Mounting: 35mm DIN rail to EN 60715
  • Connection: Bottom connection
  • Electrical Endurance: 2,000 operations
  • Mechanical Endurance: 2,000 operations
  • Operating Temperature: -5°C to +40°C
  • Dimensions (H x L x W): 115mm x 78mm x 54mm
  • Weight: 0.44 kg
Key Features
  • Combines overload, short-circuit and residual-current protection in one device
  • Type A protection detects sinusoidal AC and pulsating DC residual currents
  • C-curve characteristics suit resistive and inductive loads with moderate inrush current
  • 30mA sensitivity provides additional protection against electric shock
  • 10kA short-circuit breaking capacity for higher prospective fault levels
  • Compact three-module configuration for three-phase distribution boards
  • Visible contact-position indication
  • Fast-clip mounting on standard 35mm DIN rail
  • Suitable for cable and U-type or pin-type busbar connections
Professional Installation Requirements
  • Installation, testing and maintenance must be performed by a licensed electrician in accordance with AS/NZS 3000 and applicable electrical regulations. Isolate the supply before installation or servicing.
Applications
  • Final subcircuits in residential switchboards
  • Commercial and industrial three-phase distribution boards
  • Lighting and power circuits requiring individual earth leakage protection
  • HVAC, pumps and other mixed resistive or inductive loads
  • Electrical installations requiring Type A residual-current protection
Standards & Compliance
  • AS/NZS 61009.1 for residual current operated circuit-breakers with integral overcurrent protection
Environmental Benefits
  • RoHS 2.0 compliant, restricting the use of specified hazardous substances
  • Integrated protection can help reduce damage to wiring and connected equipment during electrical faults
  • Long electrical and mechanical service life helps reduce replacement frequency and product waste
Warranty Information

18-month manufacturer quality guarantee. Warranty coverage is subject to the applicable sales terms and authorised distribution channel.

Available Now

Available through authorised CHINT distributors in Australia.
