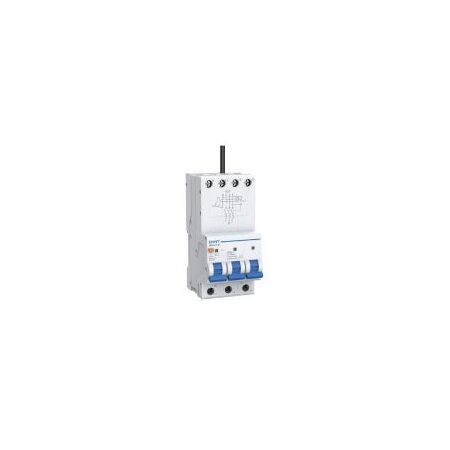

RCBO 3P+N 40A C Curve 30mA Type A 10kA NB3LEU Chint

BRAND: CABAC
SKU: 481361
$301.10 List price: $401.50
+ −
30 Days Return Electricians Unlock Trade Access
Chint NB3LEU RCBO 3P+N C40 features 30mA Type A earth leakage protection, 10kA breaking capacity, and C curve to IEC/EN 61009-1. Ideal for final subcircuits.

Alternatively Known As: Three-Phase RCBO, Four-Pole RCBO, Residual Current Circuit Breaker with Overcurrent Protection

Technical Specifications
  • Rated Current: 40 A
  • Poles: 3P+N, four-pole configuration with non-switching neutral pole
  • Rated Voltage: 400/415 V AC
  • Rated Frequency: 50/60 Hz
  • Tripping Curve: C curve, 5–10 times rated current
  • Leakage Detection Type: Type A, AC and pulsating DC residual current sensitivity
  • Rated Residual Operating Current: 30 mA
  • Rated Short-Circuit Capacity: 10 kA
  • Operating Short-Circuit Capacity: 7.5 kA
  • Rated Residual Making and Breaking Capacity: 6 kA
  • Maximum Break Time at Rated Residual Current: 0.1 s
  • Protection Degree: IP20
  • Terminal Capacity: 1–25 mm² cable
  • Tightening Torque: 2 N·m
  • Mounting: 35 mm DIN rail to EN 60715
  • Connection: Bottom connection
  • Electrical Endurance: 10,000 operations
  • Mechanical Endurance: 20,000 operations
  • Dimensions (H x L x W): 115mm x 66.2mm x 54mm
  • Weight: 0.3 kg
Key Features
  • Combines overload, short-circuit and residual current protection in one device
  • Type A protection detects sinusoidal AC and pulsating DC leakage currents
  • C-curve operation suits resistive and inductive loads with moderate inrush current
  • 3P+N configuration for three-phase final subcircuits
  • 10 kA rated short-circuit breaking capacity
  • Contact position indicator for quick status identification
  • Compact three-module DIN rail chassis
  • Suitable for cable, U-type busbar and pin-type busbar connection
Professional Installation Requirements
  • Installation, testing and replacement must be performed by a licensed electrician in accordance with AS/NZS 3000, manufacturer instructions and applicable electrical safety regulations.
Applications
  • Three-phase final subcircuits
  • Commercial and residential distribution boards
  • HVAC and refrigeration equipment supplies
  • Motors, pumps and other inductive loads with moderate starting current
  • Electrical circuits requiring combined overcurrent and 30 mA residual current protection
Standards & Compliance
  • AS/NZS 61009.1 for residual current operated circuit-breakers with integral overcurrent protection
  • AS/NZS 3000 for selection and installation within Australian and New Zealand electrical installations
Environmental Benefits
  • Conforms to EU RoHS 2.0 environmental requirements, restricting specified hazardous substances
  • Long electrical and mechanical endurance can reduce replacement frequency and associated waste
  • Combines circuit-breaker and residual-current protection in one device, reducing panel component count
  • DIN rail construction supports serviceable replacement without changing the complete switchboard assembly
Warranty Information

18-month manufacturer quality guarantee. Warranty applies to manufacturing defects and is subject to authorised sales channels, correct installation and manufacturer conditions.

Available Now

Available through authorised CHINT distributors in Australia.
