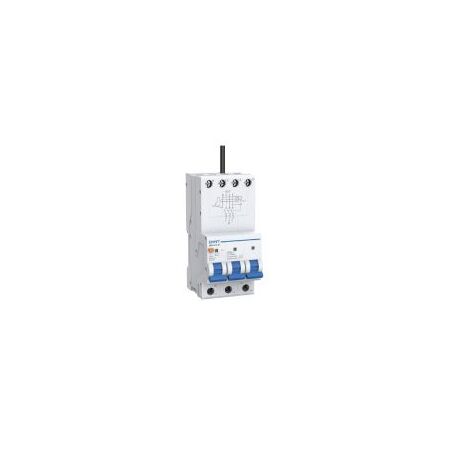

RCBO 3P+N 50A C Curve 30mA Type A 10kA NB3LEU Chint

BRAND: CABAC
SKU: 481362
$307.70 List price: $410.30
+ −
30 Days Return Electricians Unlock Trade Access
Chint NB3LEU RCBO 3P+N C50 features 30mA Type A earth leakage protection, 10kA breaking capacity, and C curve to IEC/EN 61009-1. Ideal for final subcircuits.

Alternatively Known As: Four-pole RCBO, 3-phase plus neutral RCBO, residual current circuit breaker with overcurrent protection

Technical Specifications
  • Poles: 3P+N, four-pole configuration with three protected poles and switched neutral arrangement
  • Rated Current: 50A
  • Rated Voltage: 400/415V AC
  • Rated Frequency: 50/60Hz
  • Residual Current Rating: 30mA
  • Residual Current Type: Type A electronic protection
  • Tripping Curve: C curve, 5–10 × In magnetic operating range
  • Rated Short-Circuit Capacity: 10kA Icn
  • Operating Short-Circuit Capacity: 7.5kA Ics
  • Rated Residual Making and Breaking Capacity: 6kA
  • Maximum Residual-Current Break Time: 0.1 seconds at IΔn
  • Terminal Capacity: 1–25mm² cable
  • Terminal Torque: 2N·m
  • Mounting: 35mm TH35-7.5 DIN rail
  • Protection Degree: IP20
  • Operating Temperature: −5°C to +40°C
  • Electrical Endurance: 10,000 operations
  • Mechanical Endurance: 20,000 operations
  • Dimensions (H x L x W): 119mm x 77.5mm x 70mm
  • Weight: 0.35 kg
Key Features
  • Combines overload, short-circuit and residual-current protection in one device
  • Type A detection responds to sinusoidal AC and pulsating DC residual currents
  • C-curve protection suited to resistive and inductive loads with moderate inrush current
  • Suitable for three-phase final subcircuits requiring neutral connection
  • 10kA rated short-circuit breaking capacity
  • Visual contact-position indication
  • Bottom connection with cable, U-type busbar or pin-type busbar compatibility
  • Compact modular design for switchboard installation
Professional Installation Requirements
  • Installation, testing and maintenance must be performed by a licensed electrician in accordance with AS/NZS 3000, the manufacturer's instructions and applicable state or territory electrical requirements.
Applications
  • Three-phase final subcircuits
  • Commercial and industrial distribution boards
  • HVAC and refrigeration equipment supplies
  • Motor and pump circuits with moderate starting current
  • Protection of electrical circuits against overload, short circuit and earth leakage
Standards & Compliance
  • AS/NZS 61009.1 for residual current circuit-breakers with integral overcurrent protection
  • AS/NZS 3000 for selection, installation and verification within Australian electrical installations
Environmental Benefits
  • Conforms to EU RoHS 2.0 requirements restricting hazardous substances
  • Integrated protection can reduce equipment damage and premature replacement caused by electrical faults
  • DIN-rail modular construction supports replacement of the protective device without replacing the complete switchboard assembly
  • Metal components and selected thermoplastics can be recovered through appropriate electrical equipment recycling streams
Warranty Information

18-month product quality warranty, subject to CHINT warranty conditions and authorised supply channels.

Available Now

Available through authorised CHINT distributors in Australia.
