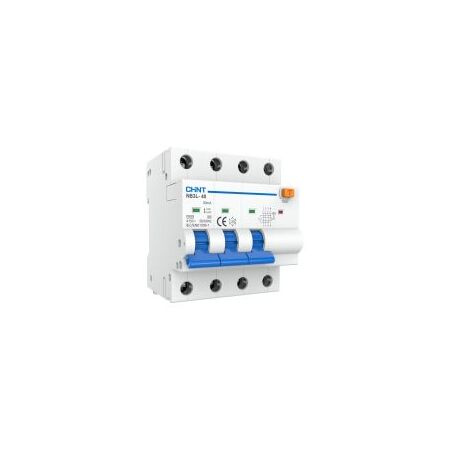

RCBO 3P+N C Curve 32A 30mA Type A 10kA NB3L Chint

BRAND: CABAC
SKU: 479975
$175.80 List price: $234.40
+ −
30 Days Return Electricians Unlock Trade Access
Chint NB3L RCBO features 3P+N 32A C curve, 10kA breaking capacity, 30mA Type A earth leakage protection, DIN rail mount. Ideal for final subcircuits.

Alternatively Known As: 3-Phase RCBO, Four-Pole RCBO, Residual Current Circuit Breaker with Overcurrent Protection

Technical Specifications
  • Product Type: Residual current operated circuit-breaker with integral overcurrent protection
  • Poles: 3P+N with switched neutral pole
  • Rated Current: 32A
  • Tripping Curve: C curve
  • Leakage Protection Type: Type A
  • Rated Residual Current: 30mA
  • Rated Voltage: 400/415V AC
  • Rated Frequency: 50/60Hz
  • Rated Short-Circuit Capacity: 10kA
  • Rated Service Short-Circuit Capacity: 7.5kA
  • Residual Making and Breaking Capacity: 6kA
  • Maximum Residual Current Breaking Time: 0.1 seconds at rated residual current
  • Rated Insulation Voltage: 500V
  • Rated Impulse Withstand Voltage: 4kV
  • Terminal Capacity: 1–25mm² conductors
  • Mounting: TH35-7.5 DIN rail
  • Electrical Endurance: 10,000 operations
  • Mechanical Endurance: 20,000 operations
  • Environmental Compliance: EU RoHS 2.0
  • Dimensions (H x L x W): 82.4mm x 77mm x 71mm
  • Weight: 0.4 kg
Key Features
  • Combines miniature circuit breaker and residual current protection in one device
  • Protects three-phase final subcircuits against overload, short circuit and earth leakage
  • Type A detection responds to sinusoidal AC and pulsating DC residual currents
  • C-curve characteristic is suitable for mixed loads and equipment with moderate inrush current
  • Four-pole configuration includes a switched neutral pole
  • 10kA rated short-circuit breaking capacity
  • DIN rail mounting for distribution boards and switchboards
  • Includes test function for checking residual current operation
Professional Installation Requirements
  • Installation, testing and commissioning must be performed by a licensed electrician in accordance with AS/NZS 3000 and applicable local electrical safety requirements. Confirm that the RCBO rating, fault level, neutral arrangement and enclosure are suitable for the installation.
Applications
  • Three-phase final subcircuits
  • Commercial and industrial distribution boards
  • Residential three-phase circuit protection
  • Mixed resistive and inductive loads
  • Motor, pump and HVAC auxiliary circuits where a C-curve device is appropriate
  • Overload, short-circuit and earth-leakage protection in low-voltage AC installations
Standards & Compliance
  • AS/NZS 61009.1:2015 residual current operated circuit-breakers with integral overcurrent protection
  • AS/NZS 3000:2018 electrical installations and selection of protective devices
  • SAA approval and RCM marking requirements applicable to the approved NB3L-40 range
Environmental Benefits
  • Complies with EU RoHS 2.0 restrictions on hazardous substances
  • Integrated protection can help reduce damage to connected equipment and associated replacement waste
  • Long mechanical and electrical endurance supports extended service life
Warranty Information

CHINT product documentation specifies an 18-month quality guarantee period. Warranty coverage may vary by sales channel and contract terms.

Available Now

Available through authorised CHINT distributors in Australia.
