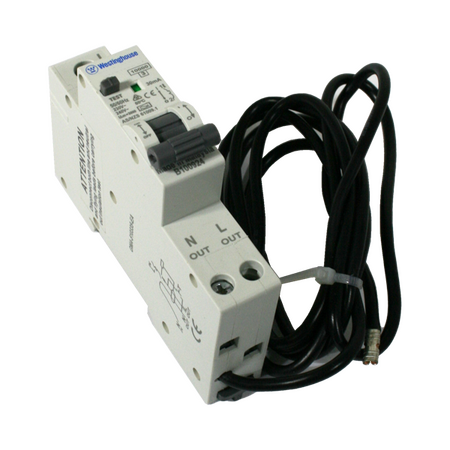

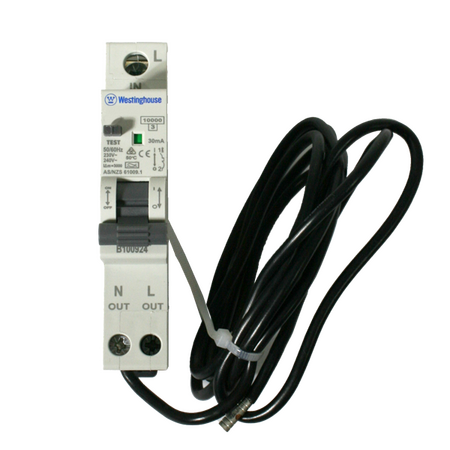

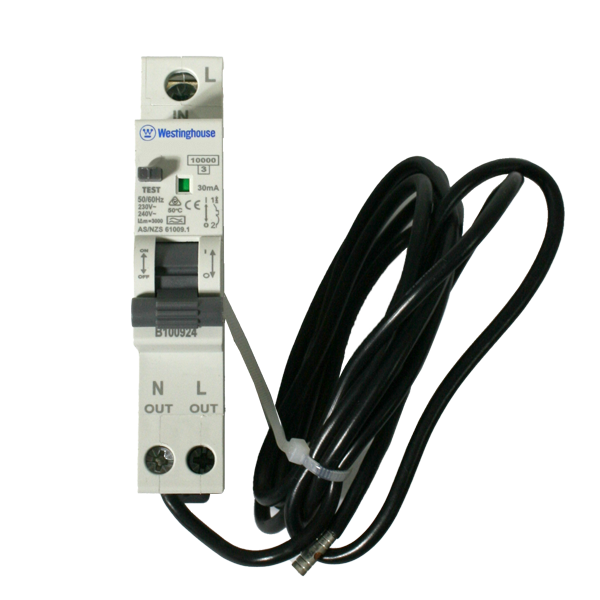

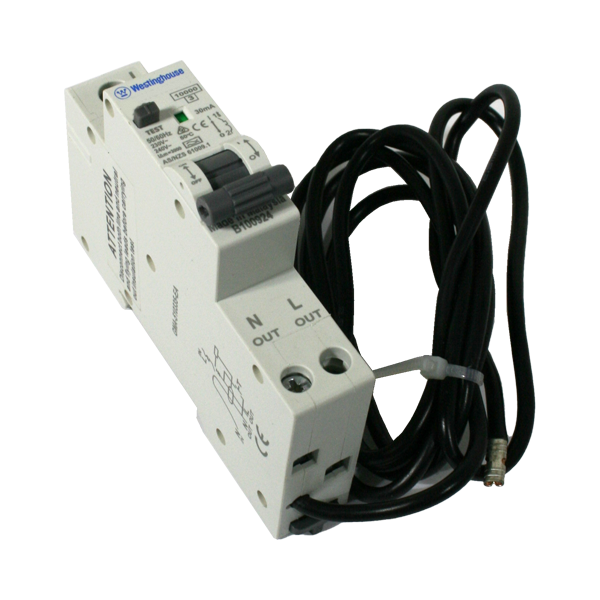

RCBO 40A 30mA 1P C Curve 10kA Chassis Mount Secure Installation General Use Eltech
RCBO with 40A current rating and 30mA residual current sensitivity—ideal for residential and commercial electrical systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Rated Current: 40A
- Residual Current: 30mA (Type A)
- Pole: Single Pole (1P)
- Tripping Curve: C Curve
- Breaking Capacity: 10kA
- Mounting Type: Chassis Mount
- Dimensions (H x L x W): 85mm x 70mm x 18mm
- Weight: 0.2 kg
Key Features
- 40 Ampere current rating
- 30mA residual current sensitivity (Type A)
- C Curve tripping characteristic for general use
- 10kA short circuit breaking capacity
- Chassis mount design for secure installation
Professional Installation Requirements
- Installation must be performed by a licensed electrician to ensure compliance with electrical safety standards and proper operation.
Applications
- Residential electrical distribution boards
- Commercial power distribution panels
- Industrial circuit protection systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- Enhances electrical safety reducing risk of electrical fires and shocks
- Supports energy efficiency by preventing electrical faults
Warranty Information
Standard manufacturer warranty applies. Please refer to Eltech for specific warranty terms.
Available Now
The Eltech RCBO 40A 30mA 1P C Curve 10kA Chassis Mount is available for immediate purchase, ideal for upgrading or installing circuit protection in electrical distribution systems.
