Trade Discount 22%

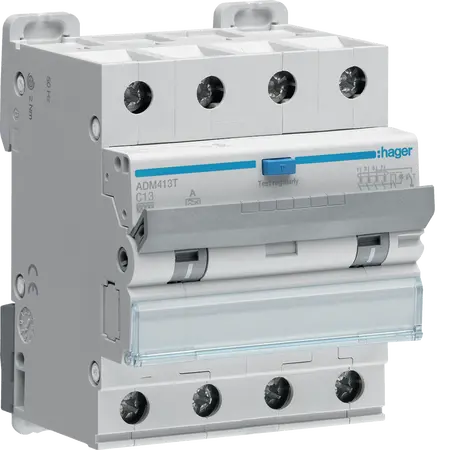

RCBO 4P 6kA C-13A 30mA | High Breaking Capacity | IP20 by Hager
RCBO with 4-pole design and 6kA breaking capacity—ideal for residential and commercial circuit protection. Built for safety with 13A current and 30mA residual current, ensuring reliable electrical safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: RCBO 4P 6kA C-13A 30mA A
Brand: Hager
SKU: ADM413T
Alternatively Known As: Residual Current Circuit Breaker, RCBO, Circuit Protection Device
Technical Specifications
- Rated current: 13 A
- Rated residual operating current: 30 mA
- Rated operational voltage: 240 - 415 V
- Rated insulation voltage: 500 V
- Dielectric strength: 2 kV
- Rated impulse withstand voltage: 4000 V
- Ingress Protection (IP) class: IP20
- Operating temperature: -25 to 40 °C
- Total power loss under IN: 10.10 W
- Dimensions (H x L x W): 84mm x 70mm x 71mm
- Weight: 0.5 kg
Key Features
- 4-pole design for comprehensive circuit protection.
- Rated current of 13A with a residual operating current of 30mA.
- High breaking capacity of 6kA.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, and small buildings
- Commercial: Offices, retail spaces, and industrial applications
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installation safety.
Environmental Benefits
- RoHS compliant, contributing to reduced environmental impact.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Hager RCBO 4P 6kA C-13A 30mA A is available now for immediate purchase. Ideal for residential and commercial electrical safety applications.
