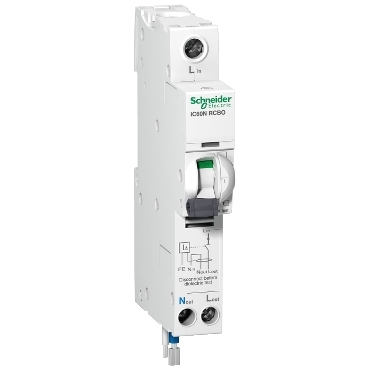

RCBO 6A 6kA 240V 30mA | Combined RCD & MCB | 2 Module Width | @Pack of 1 | by Clipsal
The RCBO 6A 6kA 240V 30mA is a combined residual current device and miniature circuit breaker, designed for effective circuit protection. Ideal for residential, commercial, and industrial applications, it features a 30mA sensitivity for personal safety and a 6kA breaking capacity. With a compact 2 module width, it easily fits into standard DIN rail enclosures, ensuring reliable protection against earth leakage and overloads.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: RCBO 6A 6kA 240V 30mA | Combined RCD & MCB | 2 Module Width | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHA9D61806
Alternatively Known As: 6A RCBO, Clipsal RCBO, Residual Current Circuit Breaker with Overcurrent, SCHA9D61806, 2 Module RCBO, 6kA RCBO, 30mA RCBO
Technical Specifications
- Rated current: 6A
- Breaking capacity: 6kA
- Rated voltage: 240V AC
- Residual current sensitivity: 30mA
- Number of poles: 1P+N (Single phase + Neutral)
- Mounting: DIN rail, 2 module width
- Trip type: Type A (AC and pulsating DC fault currents)
- Operating frequency: 50Hz
- Dimensions (H x L x W): 85mm x 75mm x 36mm
- Weight: 0.2 kg
Key Features
- Combined residual current device (RCD) and miniature circuit breaker (MCB) in one unit
- 6A rated current for circuit protection
- 6kA short-circuit breaking capacity
- 30mA residual current sensitivity for personal protection
- 2 module width for easy installation in standard DIN rail enclosures
- 240V AC single phase operation
- Provides protection against earth leakage, overloads, and short circuits
Professional Installation Requirements
- Installation must be carried out by a licensed electrician in accordance with AS/NZS 3000 wiring rules and local regulations.
Applications
- Residential electrical distribution boards
- Commercial switchboards
- Industrial electrical panels
- Protection of lighting and power circuits
Standards & Compliance
- Complies with AS/NZS 61009.1 for Residual current operated circuit-breakers with integral overcurrent protection (RCBOs)
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enhances electrical safety, reducing risk of electrical fires and personal injury
- Long operational life reduces replacement frequency and waste
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
Available for immediate purchase. Ideal for use in residential, commercial, and industrial switchboards requiring combined circuit and residual current protection.
