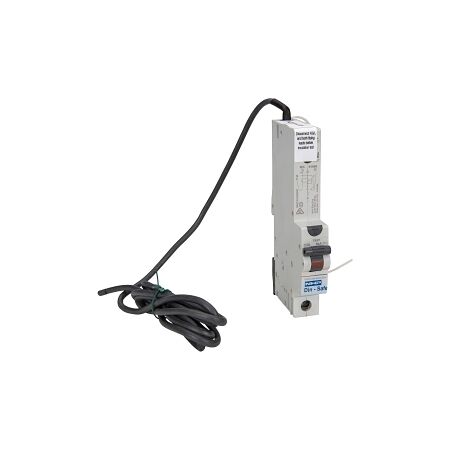

RCBO 6A 6kA 30mA Type A C Curve Short Body DIN Rail DIN Safe NHP

BRAND: NHP
SKU: DSRCBH60630A
$99.40 List price: $123.80
+ −
30 Days Return Electricians Unlock Trade Access
NHP Din Safe 6A RCBO features 6kA breaking capacity, 30mA Type A residual protection and C-curve tripping. Ideal for final subcircuit protection.
Technical Specifications
  • Rated Current: 6 A
  • Rated Voltage: 240 V
  • Rated Leakage Current: 30 mA
  • Frequency: 50/60 Hz
  • Trip Curve: C
  • Rated Impulse Withstand Voltage: 6 kV
  • Electrical Life: 10,000 cycles
  • Mechanical Life: 20,000 cycles
  • Degree of Protection: IP20
  • Mounting Method: DIN rail (top hat rail) 35 mm
  • Dimensions (H x L x W): 125mm x 76mm x 18mm
  • Weight: 0.35 kg
Key Features
  • 6kA short circuit breaking capacity
  • 30mA residual current rating
  • C curve tripping characteristic
  • DIN rail mounting for easy installation
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Residential: Homes, apartments, offices
  • Commercial: Retail, hospitality, workspaces
  • General: Any location requiring electrical safety devices
Standards & Compliance
  • Complies with AS/NZS 61009 for safety and performance standards.
Environmental Benefits
  • Helps prevent electrical hazards and enhances safety.
Warranty Information

2 years warranty against manufacturing defects.

Available Now

The NHP DIN-T Residual Current Device Long Body is available now for immediate purchase. Ideal for residential and commercial electrical safety applications.

DSRCBH60630A-AU-RCBO-6kA-1P-long-body-18mm-with-Pigtail-Datasheet.pdf (DSRCBH60630A-AU-RCBO-6kA-1P-long-body-18mm-with-Pigtail-Datasheet.pdf, 283 Kb) [Download]
