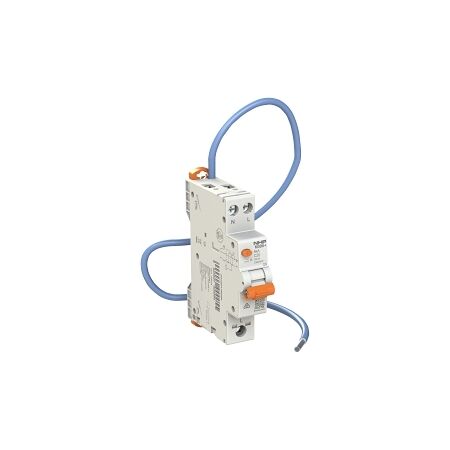

NHP MOD6+ RCBO 6kA 1 Pole and Switched N 10A C Curve 30mA Type A (Pigtail)

RCBO 6kA 1 Pole 10A C Curve | 30mA Type A | DIN Rail by NHP

BRAND: NHP

SKU: MD6RS1030A

$38.90 List price: $51.70

+ −

30 Days Return Delivery Options

RCBO with 6kA short circuit capacity and 30mA residual current rating—ideal for residential and commercial safety. Built for easy installation with DIN rail mounting, ensuring enhanced electrical protection.

Description
Attachments

Product Name/Title: NHP MOD6+ RCBO 6kA 1 Pole and Switched N 10A C Curve 30mA Type A (Pigtail)

Brand: NHP

SKU: MD6RS1030A

Alternatively Known As: Residual Current Circuit Breaker, RCBO, Earth Leakage Circuit Breaker

Technical Specifications

Rated Current: 10 A
Rated Voltage: 240 V
Rated Leakage Current: 30 mA
Frequency: 50/60 Hz
Rated Short Circuit Breaking Capacity: 6 kA
Voltage Type: AC
Trip Curve: C
Rated Impulse Withstand Voltage: 4 kV
Tripping Time: 300 ms
Min Service Voltage: 160 V
Max Operating Voltage: 264 V
Rated Residual Make Break Capacity: 3000 A
Number of Poles Total: 2
Degree of Protection: IP40
Operating Temperature: -25 to 55 °C
Dimensions (H x L x W): 86mm x 76mm x 18mm
Weight: 0.17 kg

Key Features

6kA short circuit breaking capacity
30mA residual current rating for enhanced safety
C curve for standard applications
DIN rail mounting for easy installation

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Residential: Homes, apartments, and small commercial buildings
Commercial: Retail and office spaces requiring electrical safety devices

Standards & Compliance

Complies with AS/NZS 61009 for safety and performance standards.

Environmental Benefits

Enhances electrical safety, reducing the risk of electrical fires and accidents.

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The NHP MOD6+ RCBO 6kA 1 Pole and Switched N 10A C Curve 30mA Type A is available now for immediate purchase. Ideal for residential and commercial electrical safety applications.

MD6RS1030A-AU-RCBO-6kA-1P-SN-C-Curve-Datasheet.pdf (MD6RS1030A-AU-RCBO-6kA-1P-SN-C-Curve-Datasheet.pdf, 252 Kb) [Download]
