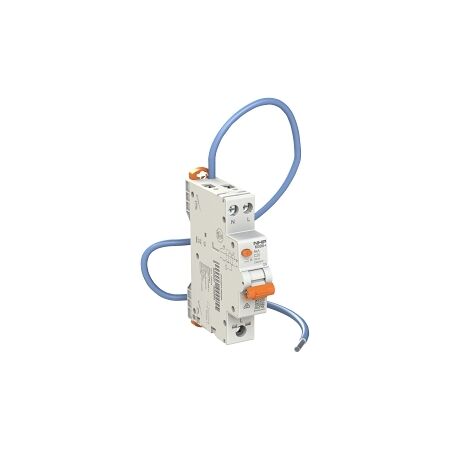

NHP MOD6+ RCBO 6kA 1 Pole and Switched N 20A C Curve 30mA Type A (Pigtail)

RCBO 6kA 1 Pole 20A C Curve | 30mA Type A | DIN Rail by NHP

BRAND: NHP

SKU: MD6RS2030A

$38.90 List price: $51.70

+ −

30 Days Return Delivery Options

RCBO with 6kA short circuit capacity and 30mA residual current rating—ideal for residential and commercial safety. Built for easy installation with DIN rail mounting, offering enhanced protection against earth leakage.

Description
Attachments

Product Name/Title: NHP MOD6+ RCBO 6kA 1 Pole and Switched N 20A C Curve 30mA Type A (Pigtail)

Brand: NHP

SKU: MD6RS2030A

Alternatively Known As: Residual Current Circuit Breaker, Earth Leakage Circuit Breaker, RCBO

Technical Specifications

Rated Current: 20 A
Rated Voltage: 240 V
Rated Leakage Current: 30 mA
Frequency: 50/60 Hz
Rated Short Circuit Breaking Capacity: 6 kA
Voltage Type: AC
Trip Curve: C
Rated Impulse Withstand Voltage: 4 kV
Tripping Time: 300 ms
Min Service Voltage: 160 V
Max Operating Voltage: 264 V
Rated Residual Make Break Capacity: 3000 A
Number of Poles Total: 2
Degree of Protection: IP40
Mechanical Life: 20000 cycles
Operating Temperature: -25 to 55 °C
Dimensions (H x L x W): 86mm x 76mm x 18mm
Weight: 0.17 kg

Key Features

6kA short circuit breaking capacity
30mA residual current rating for enhanced safety
C curve for standard applications
DIN rail mounting for easy installation

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Residential: Homes, apartments, and small buildings
Commercial: Offices and retail spaces
Industrial: Light industrial applications requiring protection against earth leakage

Standards & Compliance

Complies with AS/NZS 61009 for safety and performance standards.

Environmental Benefits

Enhances electrical safety, reducing the risk of electrical fires and accidents.

Warranty Information

2 years warranty against manufacturing defects.

Available Now

The NHP MOD6+ RCBO 6kA 1 Pole and Switched N 20A C Curve 30mA Type A (Pigtail) is available now for immediate purchase. Ideal for residential and commercial electrical safety applications.

MD6RS2030A-AU-RCBO-6kA-1P-SN-C-Curve-Datasheet.pdf (MD6RS2030A-AU-RCBO-6kA-1P-SN-C-Curve-Datasheet.pdf, 253 Kb) [Download]
