Home/Electrical/Switchgear/Residual Current Devices/RCBO 6kA 1 Pole 25A | 10mA C Curve | DIN Rail Mount by NHP

Trade Discount 25%

NHP MOD6+ RCBO 6kA 1 Pole and Switched N 25A C Curve 10mA Type A (2 screw)

RCBO 6kA 1 Pole 25A | 10mA C Curve | DIN Rail Mount by NHP

BRAND: NHP

SKU: MD6RD2510A

$48.30 List price: $64.20

+ −

30 Days Return Delivery Options

RCBO with 6kA short circuit capacity and 10mA leakage current—ideal for residential and commercial safety. Built for easy installation with DIN rail mounting, offering reliable protection against earth leakage.

Description
Attachments

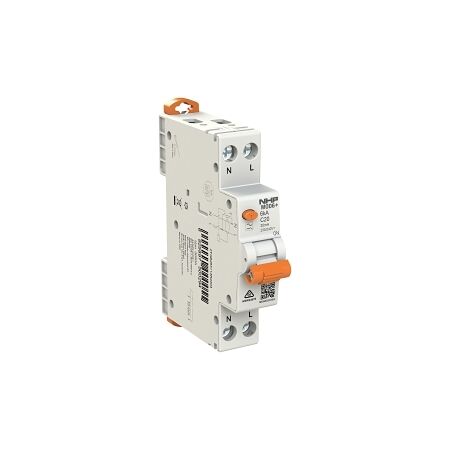

Product Name/Title: NHP MOD6+ RCBO 6kA 1 Pole and Switched N 25A C Curve 10mA Type A (2 screw)

Brand: NHP

SKU: MD6RD2510A

Alternatively Known As: Residual Current Circuit Breaker, Earth Leakage Circuit Breaker, RCBO

Technical Specifications

Rated Current: 25 A
Rated Voltage: 240 V
Rated Leakage Current: 10 mA
Frequency: 50/60 Hz
Rated Short Circuit Breaking Capacity: 6 kA
Voltage Type: AC
Trip Curve: C
Rated Impulse Withstand Voltage: 4 kV
Tripping Time: 40 ms
Min Service Voltage: 160 V
Max Operating Voltage: 264 V
Rated Residual Make Break Capacity: 3000 A
Number of Poles Total: 2
Degree of Protection: IP40
Operating Temperature: -25 to 55 °C
Dimensions (H x L x W): 86mm x 76mm x 18mm
Weight: 0.12 kg

Key Features

6kA short circuit breaking capacity
10mA leakage current rating for enhanced safety
C curve for general applications
DIN rail mounting for easy installation

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Residential: Homes, apartments, and small buildings
Commercial: Offices and retail spaces
General: Any electrical installation requiring protection against earth leakage

Standards & Compliance

Complies with AS/NZS 61009 for safety and performance standards.

Environmental Benefits

Reduces the risk of electrical fires and accidents, promoting safety in electrical systems.

Warranty Information

2 years warranty against manufacturing defects.

Available Now

The NHP MOD6+ RCBO 6kA 1 Pole and Switched N 25A C Curve 10mA Type A is available now for immediate purchase. Ideal for residential and commercial electrical installations.

MD6RD2510A-AU-RCBO-6kA-1P-SN-C-Curve-Datasheet.pdf (MD6RD2510A-AU-RCBO-6kA-1P-SN-C-Curve-Datasheet.pdf, 267 Kb) [Download]
