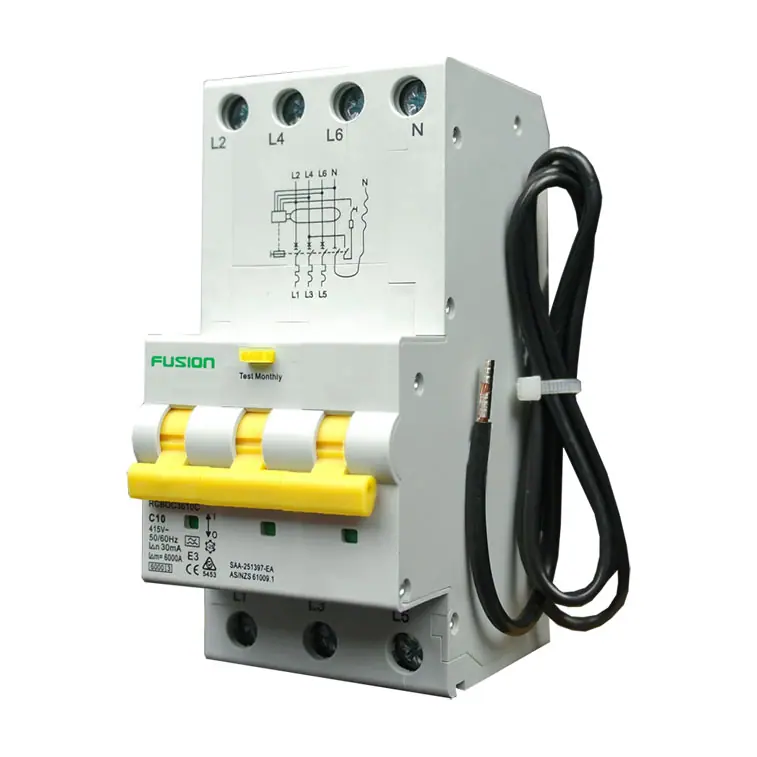

RCBO Chassis Mount Electromagnetic 3P+N 10A 30mA | 6kA Breaking Capacity | C Curve | by Connected Switchgear
The RCBO Chassis Mount Electromagnetic 3P+N 10A 30mA is designed for industrial and commercial electrical protection. With a 6kA breaking capacity and C Curve tripping, it ensures safety against earth leakage and overloads. Compliant with AS/NZS 61009.1, this device is essential for reliable electrical installations, enhancing safety and efficiency in your operations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: RCBO 3P+N 10A 30mA Type A, Electromagnetic Residual Current Breaker, RCBO 6kA 415V
Technical Specifications
- Rated Current: 10A
- Rated Voltage: 415V AC
- Pole Configuration: 3P+N
- Breaking Capacity: 6kA
- Tripping Curve: C Curve
- Residual Current Rating: 30mA
- Type: A
- Compliance: AS/NZS 61009.1
- Dimensions (H x L x W): 80mm x 70mm x 90mm
- Weight: 0.5 kg
Key Features
- Electromagnetic residual current device with over current protection
- 6kA rated breaking capacity
- Protection for both active and neutral conductors
- Designed for industrial and commercial applications
- Complies with AS/NZS 61009.1
Professional Installation Requirements
- Installation must be performed by a licensed electrician to ensure compliance with safety standards and proper operation.
Applications
- Industrial electrical protection
- Commercial electrical installations
- Protection against earth leakage, overload, and short circuit in active and neutral conductors
Standards & Compliance
- Complies with AS/NZS 61009.1 – Residual Current Devices (RCDs) including RCBOs
Environmental Benefits
- Enhances electrical safety reducing risk of electrical fires and faults
- Supports energy efficiency by preventing electrical faults and downtime
Warranty Information
Standard manufacturer warranty applies, typically 1-2 years against manufacturing defects.
Available Now
The Connected Switchgear RCBO Chassis Mount Electromagnetic 3P+N 6kA 415V AC 10A C Curve 30mA TYPE A is available for immediate purchase, ideal for industrial and commercial electrical protection applications.
