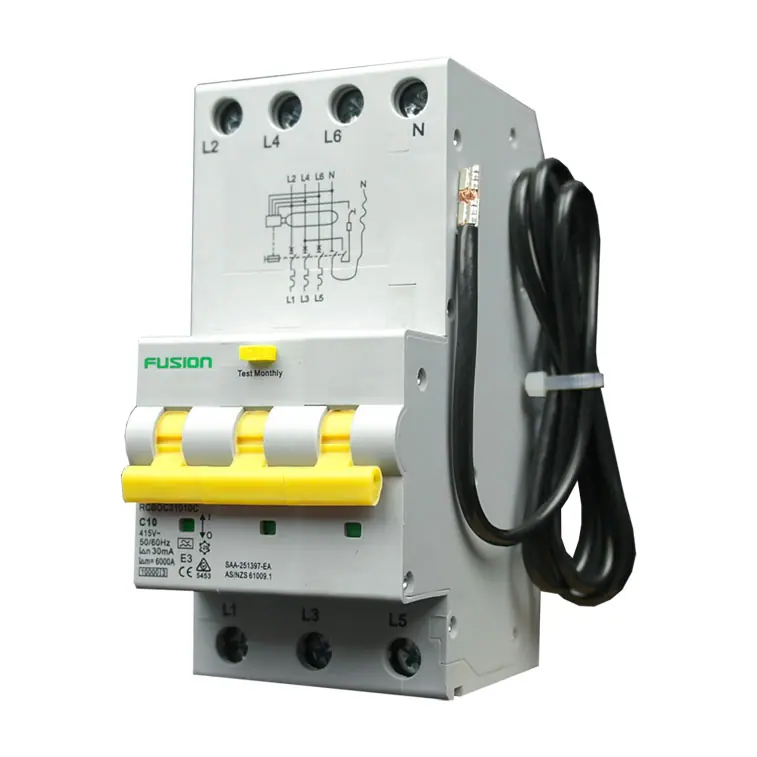

RCBO Chassis Mount Electromagnetic 3P+N | 10kA Breaking Capacity | 30mA Type A | 415V AC | by Connected Switchgear
The RCBO Chassis Mount Electromagnetic 3P+N is designed for reliable electrical protection, featuring a 10kA breaking capacity and 30mA Type A residual current detection. Ideal for industrial and commercial applications, it ensures safety against earth leakage and overcurrent, complying with AS/NZS 61009.1 standards for enhanced performance and reliability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Residual Current Breaker with Overcurrent, Electromagnetic RCBO 3P+N, 40 Amp RCBO, Type A RCBO
Technical Specifications
- Type: Electromagnetic RCBO
- Poles: 3P+N
- Rated Current: 40A
- Rated Voltage: 415V AC
- Breaking Capacity: 10kA
- Curve Type: C Curve
- Residual Current Rating: 30mA
- Type A residual current detection
- Complies with AS/NZS 61009.1
- Dimensions (H x L x W): 80mm x 70mm x 90mm
- Weight: 1.5 kg
Key Features
- Electromagnetic residual current device with overcurrent protection
- 10kA rated breaking capacity for high fault current interruption
- Protection for both active and neutral conductors
- Designed to comply with AS/NZS 61009.1
- Reliable performance in industrial and commercial applications
Professional Installation Requirements
- Installation must be performed by a licensed electrician to ensure compliance with safety standards and proper operation.
Applications
- Industrial electrical systems requiring earth leakage protection
- Commercial electrical installations with overload and short circuit protection
- Electrical panels needing combined residual current and overcurrent protection
Standards & Compliance
- AS/NZS 61009.1 – Residual current operated circuit-breakers with integral overcurrent protection for household and similar uses
Environmental Benefits
- Enhances electrical safety reducing risk of electrical fires and faults
- Supports energy efficiency by preventing electrical faults and downtime
Warranty Information
Standard manufacturer warranty applies; typically 1-2 years against defects.
Available Now
The Connected Switchgear RCBO Chassis Mount Electromagnetic 3P+N 10kA 415V AC 40A C Curve 30mA TYPE A is available for immediate purchase, ideal for industrial and commercial electrical protection applications.
