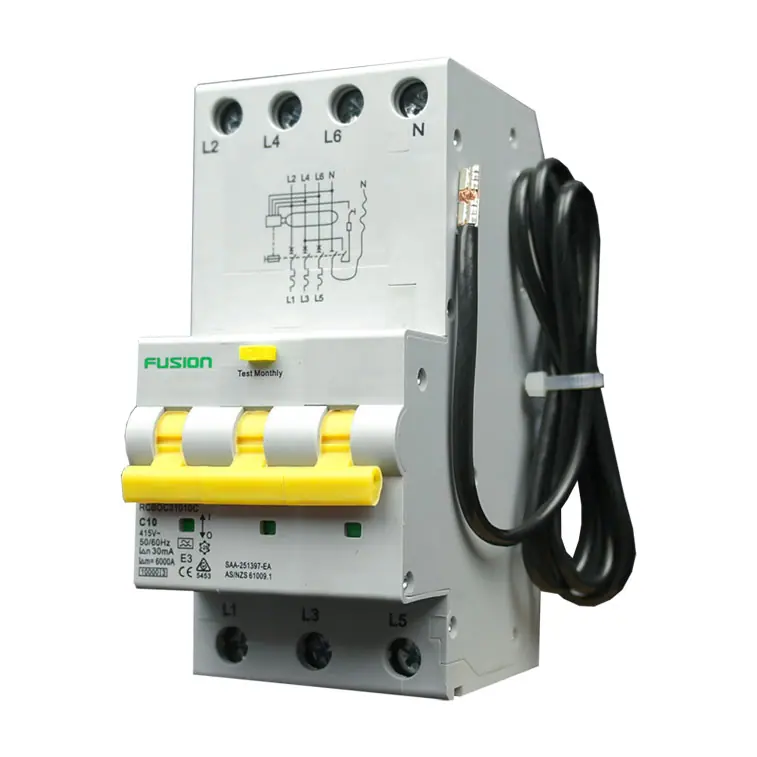

RCBO Chassis Mount Electromagnetic 3P+N | 10kA Breaking Capacity | 30mA Type A | by Connected Switchgear
The RCBO Chassis Mount Electromagnetic 3P+N is designed for reliable electrical protection, featuring a 10kA breaking capacity and 30mA Type A residual current detection. Ideal for industrial and commercial applications, this device ensures safety against earth leakage and overloads, making it essential for electrical panels and installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Residual Current Breaker with Overcurrent, Electromagnetic RCBO, 3P+N RCBO, Type A RCBO
Technical Specifications
- Rated Current: 16A
- Rated Voltage: 415V AC
- Poles: 3P+N
- Breaking Capacity: 10kA
- Tripping Curve: C Curve
- Residual Current Rating: 30mA
- Type: Type A (AC and pulsating DC earth leakage detection)
- Mounting: Chassis mount
- Standards Compliance: AS/NZS 61009.1
- Dimensions (H x L x W): 80mm x 70mm x 90mm
- Weight: 1.2 kg
Key Features
- Electromagnetic residual current device with over current protection
- 10kA rated breaking capacity for high fault current interruption
- C Curve tripping characteristic suitable for general applications
- Type A residual current detection for AC and pulsating DC earth leakage
- Chassis mount design for secure installation
Professional Installation Requirements
- Installation must be performed by a licensed electrician to ensure compliance with electrical safety standards and proper device operation.
Applications
- Industrial electrical panels
- Commercial electrical installations
- Protection of active and neutral conductors against earth leakage, overload, and short circuit
Standards & Compliance
- Complies with AS/NZS 61009.1 – Residual current operated circuit-breakers (RCCBs) with integral overcurrent protection for household and similar uses
Environmental Benefits
- Enhances electrical safety reducing risk of electrical fires and faults
- Supports energy efficiency by preventing electrical faults and power losses
Warranty Information
3 years warranty against manufacturing defects.
Available Now
The Connected Switchgear RCBO Chassis Mount Electromagnetic 3P+N 10kA 415V AC 16A C Curve 30mA TYPE A is available for immediate purchase, ideal for industrial and commercial electrical protection applications.
