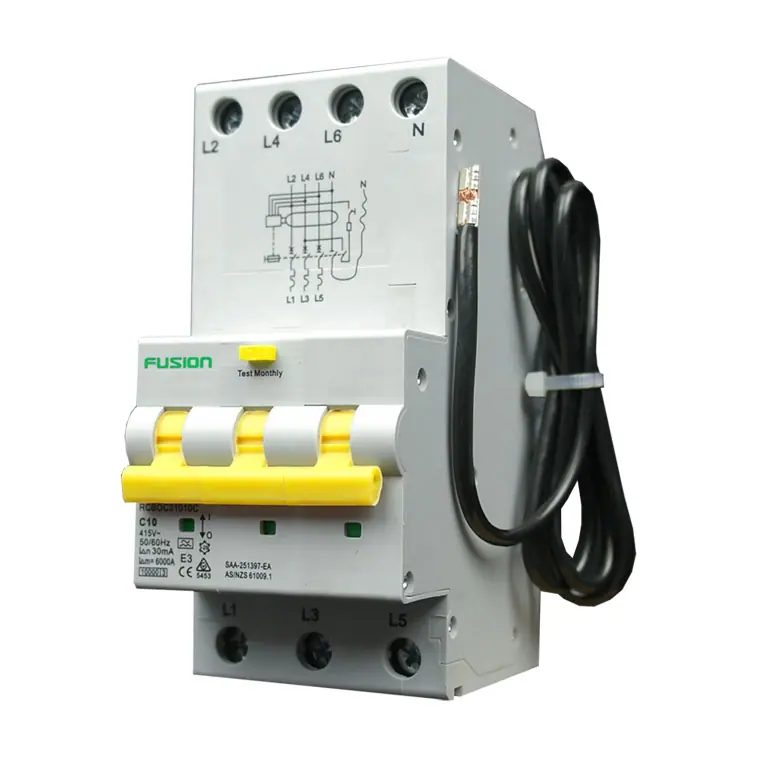

RCBO Chassis Mount Electromagnetic 3P+N | 10kA Breaking Capacity | 30mA Type A | by Connected Switchgear
The RCBO Chassis Mount Electromagnetic 3P+N is designed for reliable electrical protection, featuring a 10kA breaking capacity and 30mA Type A residual current detection. Ideal for industrial and commercial applications, this device ensures safety against earth leakage and overcurrent, making it essential for electrical distribution systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Residual Current Breaker with Overcurrent, Electromagnetic RCBO 3P+N, 25 Amp RCBO, Type A Earth Leakage Circuit Breaker
Technical Specifications
- Rated Current: 25A
- Rated Voltage: 415V AC
- Pole Configuration: 3P+N
- Breaking Capacity: 10kA
- Tripping Curve: C Curve
- Residual Current Rating: 30mA
- Type: Type A (AC and pulsating DC leakage detection)
- Mounting: Chassis mount
- Standards Compliance: AS/NZS 61009.1
- Dimensions (H x L x W): 85mm x 70mm x 90mm
- Weight: 1.2 kg
Key Features
- Electromagnetic residual current device with overcurrent protection
- Chassis mount design for secure installation
- 10kA rated breaking capacity for high fault current interruption
- Protection for both active and neutral conductors
- C Curve tripping characteristic suitable for general applications
- Type A residual current detection for AC and pulsating DC leakage currents
Professional Installation Requirements
- Installation must be performed by a licensed electrician to ensure compliance with safety standards and proper operation.
Applications
- Industrial electrical distribution systems
- Commercial electrical installations
- Protection of circuits requiring earth leakage and overcurrent protection
Standards & Compliance
- Complies with AS/NZS 61009.1 – Residual current operated circuit-breakers with integral overcurrent protection
Environmental Benefits
- Enhances electrical safety reducing risk of electrical fires and faults
- Supports energy efficiency by preventing electrical faults and downtime
Warranty Information
3 years warranty against manufacturing defects.
Available Now
The Connected Switchgear RCBO Chassis Mount Electromagnetic 3P+N 10kA 415V AC 25A C Curve 30mA TYPE A is available for immediate purchase, ideal for industrial and commercial electrical protection applications.
