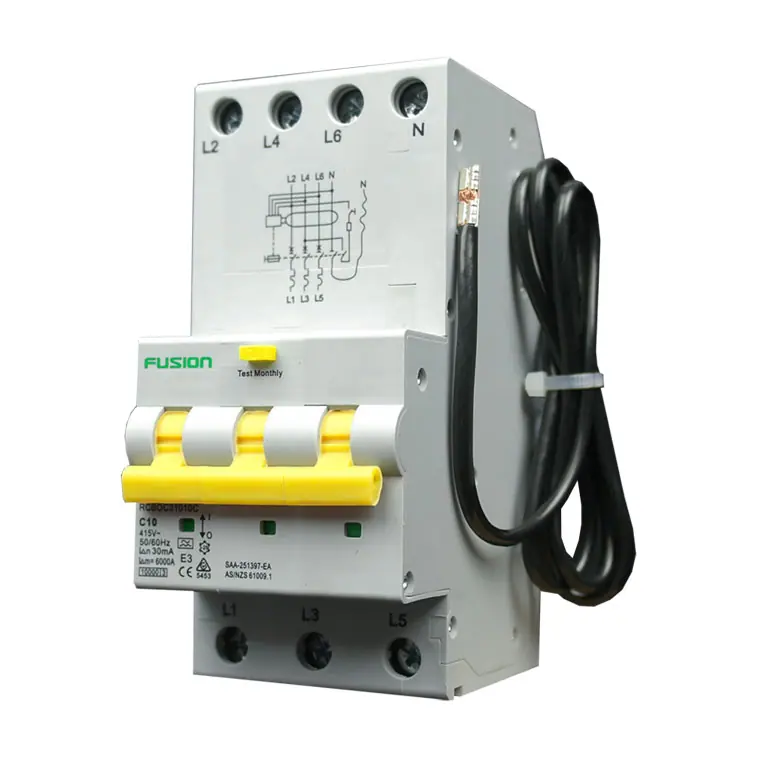

RCBO Chassis Mount Electromagnetic 3P+N 10kA 32A C Curve 30mA TYPE A | by Connected Switchgear
The RCBO Chassis Mount Electromagnetic 3P+N is designed for reliable electrical protection, featuring a 10kA breaking capacity and a 30mA residual current rating. Ideal for industrial and commercial applications, this device ensures safety against earth leakage and overcurrent, complying with AS/NZS 61009.1 standards for enhanced performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Residual Current Breaker with Overcurrent Protection, Electromagnetic RCBO, 3P+N RCBO, Type A RCBO
Technical Specifications
- Rated Current: 32A
- Rated Voltage: 415V AC
- Poles: 3P+N
- Breaking Capacity: 10kA
- Trip Curve: C Curve
- Residual Current Rating: 30mA
- Type: A (detects AC and pulsating DC residual currents)
- Compliance: AS/NZS 61009.1
- Dimensions (H x L x W): 85mm x 70mm x 90mm
- Weight: 1.5 kg
Key Features
- Electromagnetic residual current device with overcurrent protection
- 10kA rated breaking capacity for high fault current interruption
- C Curve trip characteristic suitable for general applications
- Protection for both active and neutral conductors
- Complies with AS/NZS 61009.1 for safety and performance
Professional Installation Requirements
- Installation must be performed by a licensed electrician to ensure compliance with electrical safety standards and proper device operation.
Applications
- Industrial electrical systems requiring earth leakage protection
- Commercial electrical installations with overload and short circuit protection
- Electrical panels needing combined residual current and overcurrent protection
Standards & Compliance
- Complies with AS/NZS 61009.1 – Residual current devices (RCDs) including residual current breakers with overcurrent protection (RCBOs)
Environmental Benefits
- Enhances electrical safety reducing risk of electrical fires and faults
- Durable design reduces need for frequent replacements, minimizing waste
Warranty Information
3 years warranty against manufacturing defects.
Available Now
The Connected Switchgear RCBO Chassis Mount Electromagnetic 3P+N 10kA 32A C Curve 30mA TYPE A is available for immediate purchase, ideal for industrial and commercial electrical protection applications.
