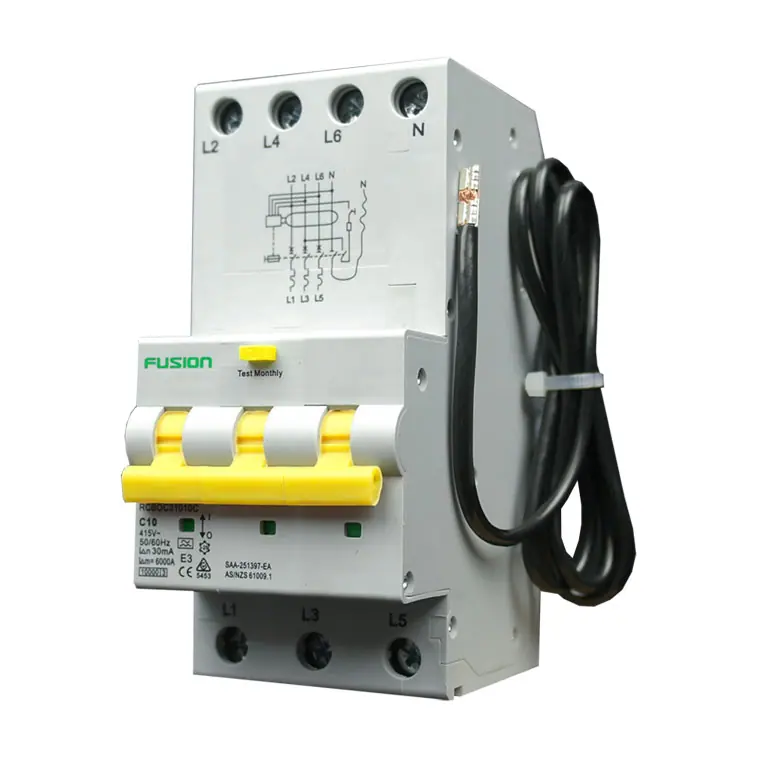

RCBO Chassis Mount Electromagnetic 3P+N 10kA 415V AC 10A C Curve 30mA TYPE A | by Connected Switchgear
The RCBO Chassis Mount Electromagnetic 3P+N is designed for reliable electrical protection, featuring a 10kA breaking capacity and 30mA residual current rating. Ideal for industrial and commercial applications, this device ensures safety against earth leakage and overcurrent, making it essential for electrical panels and installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Residual Current Breaker with Overcurrent Protection, Electromagnetic RCBO, 3P+N RCBO, Type A RCBO
Technical Specifications
- Rated Current: 10A
- Rated Voltage: 415V AC
- Pole Configuration: 3P+N
- Breaking Capacity: 10kA
- Tripping Curve: C Curve
- Residual Current Rating: 30mA
- Type: Type A (AC and pulsating DC leakage detection)
- Mounting: Chassis mount
- Standards Compliance: AS/NZS 61009.1
- Dimensions (H x L x W): 85mm x 70mm x 45mm
- Weight: 0.5 kg
Key Features
- Electromagnetic residual current device with overcurrent protection
- 10kA rated breaking capacity for high fault current interruption
- C Curve tripping characteristic suitable for general applications
- Protection for both active and neutral conductors
- Type A residual current detection for AC and pulsating DC leakage currents
Professional Installation Requirements
- Installation must be performed by a licensed electrician to ensure compliance with electrical safety standards and proper device operation.
Applications
- Industrial electrical panels
- Commercial electrical installations
- Protection of circuits requiring earth leakage and overcurrent protection
Standards & Compliance
- Complies with AS/NZS 61009.1 – Residual current operated circuit-breakers with integral overcurrent protection for household and similar uses
Environmental Benefits
- Enhances electrical safety reducing risk of electrical fires and faults
- Supports energy efficiency by preventing electrical faults and damage
Warranty Information
Standard manufacturer warranty applies. Please refer to Connected Switchgear warranty terms for details.
Available Now
The Connected Switchgear RCBO Chassis Mount Electromagnetic 3P+N 10kA 415V AC 10A C Curve 30mA TYPE A is available for immediate purchase, ideal for industrial and commercial electrical protection applications.
