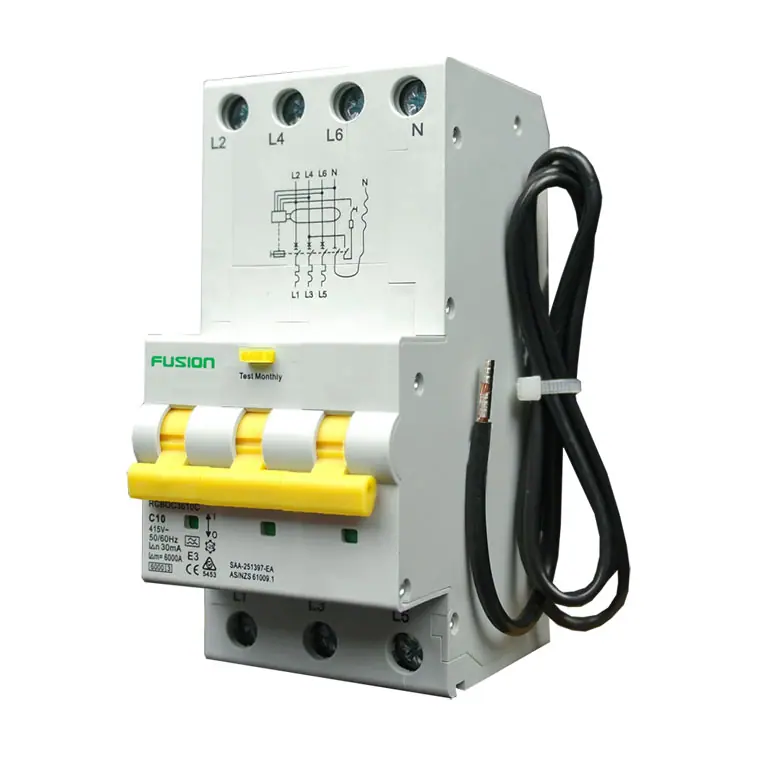

RCBO Chassis Mount Electromagnetic 3P+N 6kA 415V AC 25A C Curve 30mA TYPE A | 6kA Breaking Capacity | AS/NZS 61009.1 Compliant | by Connected Switchgear
The RCBO Chassis Mount Electromagnetic 3P+N is designed for robust electrical protection, featuring a 6kA breaking capacity and a 30mA residual current rating. Ideal for industrial and commercial applications, this device ensures safety against earth leakage and overcurrent, complying with AS/NZS 61009.1 standards. Perfect for electrical panels and installations requiring reliable protection for both active and neutral conductors.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Residual Current Breaker with Overcurrent Protection, Electromagnetic RCBO, 3P+N RCBO, Type A RCBO
Technical Specifications
- Rated Current: 25A
- Rated Voltage: 415V AC
- Pole Configuration: 3P+N
- Breaking Capacity: 6kA
- Tripping Curve: C Curve
- Residual Current Rating: 30mA
- Type: A (sensitive to AC and pulsating DC residual currents)
- Compliance: AS/NZS 61009.1
- Dimensions (H x L x W): 85mm x 75mm x 45mm
- Weight: 0.5 kg
Key Features
- Electromagnetic residual current device with overcurrent protection
- 6kA rated breaking capacity suitable for industrial and commercial use
- Protection for both active and neutral conductors
- Complies with AS/NZS 61009.1 for safety and performance
Professional Installation Requirements
- Installation must be performed by a licensed electrician to ensure compliance with electrical safety standards and proper device operation.
Applications
- Industrial electrical systems requiring earth leakage protection
- Commercial electrical installations with overload and short circuit protection
- Electrical panels needing combined residual current and overcurrent protection
Standards & Compliance
- Complies with AS/NZS 61009.1 – Residual Current Devices (RCDs) with Overcurrent Protection
Environmental Benefits
- Enhances electrical safety reducing risk of electrical fires and faults
- Supports energy efficiency by preventing electrical faults and downtime
Warranty Information
Standard manufacturer warranty applies, typically 1-2 years against manufacturing defects.
Available Now
The Connected Switchgear RCBO Chassis Mount Electromagnetic 3P+N 6kA 415V AC 25A C Curve 30mA TYPE A is available for immediate purchase, ideal for industrial and commercial electrical protection applications.
