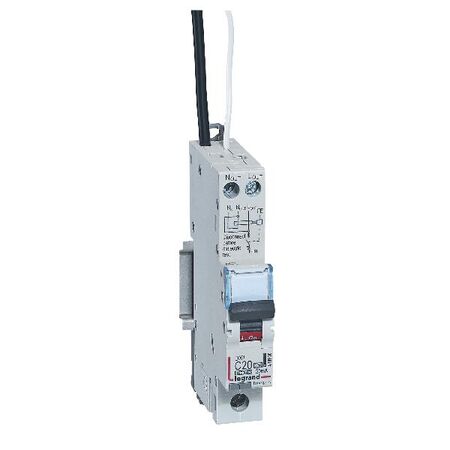

RCBO Combo Circuit Breaker 10KA | 1P10A Type A | 100mA Black Tail by Legrand
RCBO combo circuit breaker with 10KA breaking capacity and 100mA sensitivity—ideal for residential and commercial electrical protection. Built for safety, with overcurrent and residual current protection in a compact design.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: RCBO (COMBO MCB/RCD) 10KA DX3 1P10A TYPEA 100MA 1M BLACK TAIL
Brand: Legrand
SKU: 418941
Alternatively Known As: RCBO, Combo Circuit Breaker, Residual Current Circuit Breaker
Technical Specifications
- Rated Current: 10A
- Rated Voltage: 230V
- Breaking Capacity: 10KA
- Type: Type A
- Sensitivity: 100mA
- 1 Pole with Neutral (1P+N)
- Installation: 2-module width in standard enclosures
- Dimensions (H x L x W): 100mm x 75mm x 80mm
- Weight: 0.5 kg
Key Features
- Combination device providing both overcurrent and residual current protection.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, and small buildings
- Commercial: Retail and office installations
- General: Circuit protection in various electrical systems
Standards & Compliance
- Complies with AS/NZS 61009 for residual current devices.
Environmental Benefits
- Enhanced safety reduces the risk of electrical hazards.
- Energy-saving design helps minimize electricity waste.
Warranty Information
3 years warranty against manufacturing defects.
Available Now
The Legrand RCBO (Combo MCB/RCD) 10KA DX3 1P10A Type A 100mA 1M Black Tail is available now for immediate purchase. Ideal for residential and commercial electrical protection.
