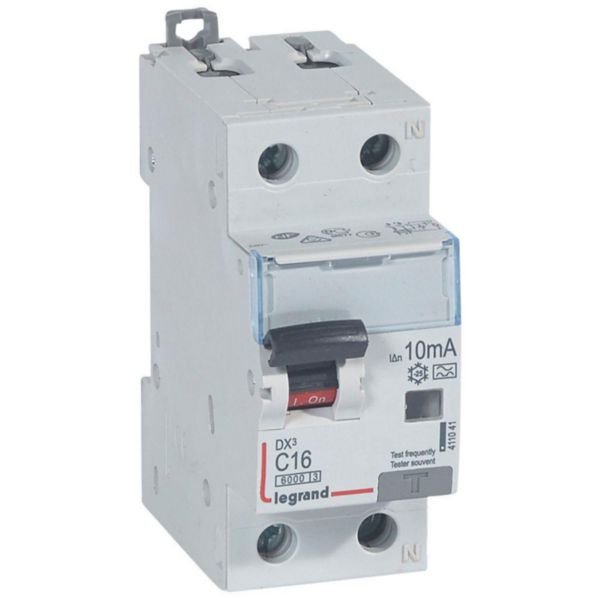

RCBO DX³ 6000 1P+N 16A 10mA Type A | 10 kA Breaking Capacity | IP20 Rated | @Each of 1 | by Legrand
The RCBO DX³ 6000 is a reliable residual current circuit breaker with overload protection, rated at 16A and 10mA for enhanced safety. Ideal for residential and small commercial electrical panels, it features a 10 kA breaking capacity and Type A leakage current detection, ensuring protection against electrical faults. Designed for professional installation, this device supports photovoltaic systems and complies with AS/NZS 3000 standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: RCBO DX³ 6000 1P+N 16A 10mA Type A | 10 kA Breaking Capacity | IP20 Rated | @Each of 1 | by Legrand
Brand: Legrand
SKU: 411041
Alternatively Known As: Residual Current Breaker with Overload (RCBO), DX3 6000 RCBO, Type A RCBO 16A, 1P+N RCBO 10mA
Technical Specifications
- Number of poles: 2 (1 pole + neutral)
- Rated current: 16 A
- Rated voltage: 230 V AC
- Rated residual operating current: 10 mA
- Leakage current type: Type A (AC and DC components)
- Breaking capacity: 6 kA (EN 61009-1), 10 kA (IEC 60947-2)
- Frequency: 50 Hz
- Release characteristic: C curve
- Connectable conductor cross section solid-core: 0.75-16 mm²
- Connectable conductor cross section multi-wired: 0.75-10 mm²
- Degree of protection: IP20
- Pollution degree: 2
- Width: 2 modular spacings
- Built-in depth: 44 mm
- Voltage type: AC
- Surge current capacity: 0.25 kA
- Anti-nuisance tripping version: No
- Dimensions (H x L x W): 85mm x 44mm x 36mm
- Weight: 0.2 kg
Key Features
- Residual current circuit breaker with overload protection
- Rated current: 16 A
- Rated voltage: 230 V AC
- Type A leakage current detection (AC and DC components)
- Breaking capacity: 6 kA (EN 61009-1), 10 kA (IEC 60947-2)
- Voltage independent tripping
- Compatible with prong-type and fork-type supply busbars
- Concurrently switching neutral conductor
- Interlocking device included
- Pollution degree 2
- IP20 degree of protection
Professional Installation Requirements
- Installation must be performed by a qualified electrician to ensure compliance with electrical safety standards and proper integration into the electrical panel.
Applications
- Residential electrical panels
- Small commercial electrical panels
- Photovoltaic system protection
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enhances electrical safety reducing risk of electrical fires and faults
- Supports photovoltaic system safety contributing to renewable energy use
Warranty Information
Standard manufacturer warranty applies, typically 2 years against manufacturing defects.
Available Now
The Legrand RCBO DX³ 6000 1P+N 16A 10mA Type A is available for immediate purchase, ideal for residential and small commercial panel protection including photovoltaic systems.
