RCBO DX³ 6000 1P+N 32A 30mA AC Type | 10 kA Breaking Capacity | IP20 Rated | @EA of 1 | by Legrand
The RCBO DX³ 6000 is a reliable residual current circuit breaker with overload protection, featuring a rated current of 32A and a residual current of 30mA. Designed for residential and small commercial electrical panels, it ensures safety by detecting AC component faults and has a breaking capacity of 10 kA. Ideal for photovoltaic system protection, this device is essential for enhancing electrical safety and compliance with AS/NZS 3000 standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

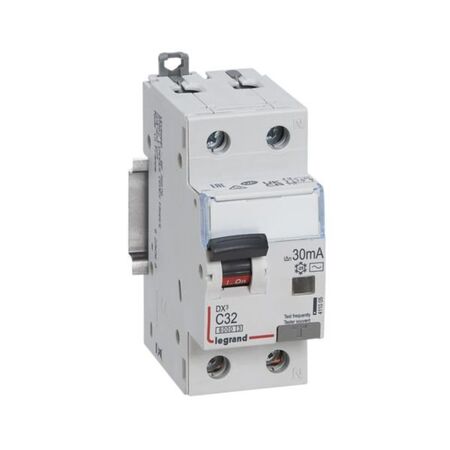

Product Name/Title: RCBO DX³ 6000 1P+N 32A 30mA AC Type | 10 kA Breaking Capacity | IP20 Rated | @EA of 1 | by Legrand
Brand: Legrand
SKU: 411005
Alternatively Known As: Residual Current Breaker with Overload (RCBO), Earth Leakage Circuit Breaker, RCD with Overcurrent Protection
Technical Specifications
- Number of poles: 2 (1 pole + neutral)
- Rated voltage: 230 V AC
- Rated current: 32 A
- Rated residual current: 30 mA
- Leakage current type: AC
- Current limiting class: 3
- Rated short-circuit breaking capacity: 6 kA (EN 61009-1), 10 kA (IEC 60947-2)
- Surge current capacity: 0.25 kA
- Frequency: 50 Hz
- Release characteristic: C curve
- Concurrently switching neutral conductor: Yes
- Pollution degree: 2
- Degree of protection: IP20
- Connectable conductor cross section: solid-core 0.75-16 mm², multi-wired 0.75-10 mm²
- Width: 2 modular spacings
- Built-in depth: 44 mm
- Anti-nuisance tripping version: No
- Dimensions (H x L x W): 85mm x 70mm x 36mm
- Weight: 0.2 kg
Key Features
- Residual current circuit breaker with overload protection
- Rated current: 32 A
- Rated residual operating current: 30 mA
- AC type detects AC component faults
- Breaking capacity: 10 kA (IEC 60947-2), 6 kA (EN 61009-1)
- Voltage independent tripping
- Compatible with prong-type and fork-type supply busbars
- Neutral conductor on right-hand side
- C curve release characteristic
- Pollution degree 2
- IP20 degree of protection
- Connectable conductor cross section: solid-core 0.75-16 mm², multi-wired 0.75-10 mm²
- Width: 2 modular spacings
- Built-in depth: 44 mm
- With interlocking device
Professional Installation Requirements
- Installation must be performed by a licensed electrician to ensure compliance with electrical safety standards and proper integration into the electrical panel.
Applications
- Residential electrical panels
- Small commercial electrical panels
- Photovoltaic system protection
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enhances electrical safety reducing risk of electrical fires and faults
- Supports energy-efficient and safe photovoltaic system installations
Warranty Information
Legrand offers a standard 2-year warranty covering manufacturing defects.
Available Now
The Legrand RCBO DX³ 6000 1P+N 32A 30mA AC Type is available for immediate purchase, ideal for residential and small commercial electrical panel protection including photovoltaic systems.
