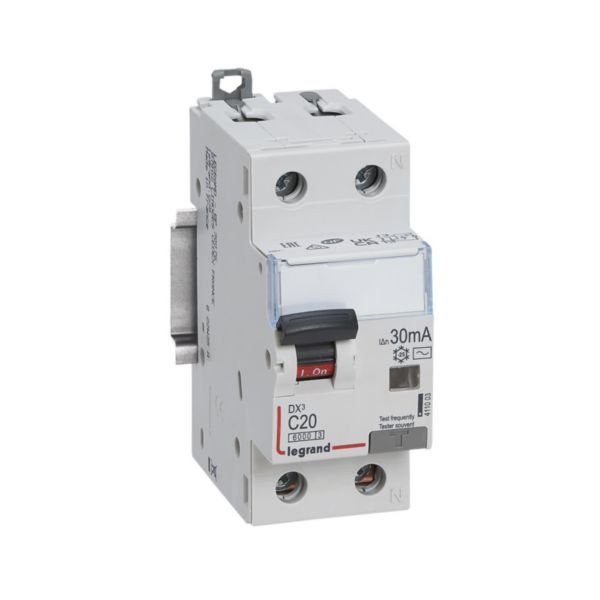

RCBO DX³ 6000 20A 30mA AC Type | 10 kA Breaking Capacity | IP20 Rated | @Each of 1 | by Legrand
The RCBO DX³ 6000 is a 20A 30mA AC type residual current circuit breaker designed for residential and small commercial electrical panels. With a breaking capacity of 10 kA and IP20 protection, it ensures safety against electrical faults while supporting photovoltaic systems. Ideal for qualified electricians, this device enhances electrical safety and compliance with AS/NZS 3000 standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: RCBO DX³ 6000 20A 30mA AC Type | 10 kA Breaking Capacity | IP20 Rated | @Each of 1 | by Legrand
Brand: Legrand
SKU: 411003
Alternatively Known As: Residual Current Breaker with Overload, RCBO 20A 30mA, DX3 6000 RCBO, Legrand Residual Current Device
Technical Specifications
- Number of poles (total): 2
- Number of protected poles: 1
- Rated voltage: 230 V AC
- Rated current: 20 A
- Rated fault current: 0.03 A (30 mA)
- Leakage current type: AC
- Current limiting class: 3
- Rated short-circuit breaking capacity (EN 61009): 6 kA
- Rated short-circuit breaking capacity (IEC 60947-2): 10 kA
- Surge current capacity: 0.25 kA
- Frequency: 50 Hz
- Release characteristic: C curve
- Concurrently switching neutral conductor: Yes
- Pollution degree: 2
- Width in modular spacings: 2
- Built-in depth: 44 mm
- Anti-nuisance tripping version: No
- Degree of protection: IP20
- Connectable conductor cross section solid-core: 0.75-16 mm²
- Connectable conductor cross section multi-wired: 0.75-10 mm²
- Dimensions (H x L x W): 85mm x 44mm x 36mm
- Weight: 0.2 kg
Key Features
- Residual current circuit breaker with overload protection
- Breaking capacity of 10 kA (IEC 60947-2) and 6 kA (EN 61009-1)
- AC type detects AC component faults
- Voltage independent tripping
- Compatible with prong-type and fork-type supply busbars
- Neutral on right-hand side
- C curve release characteristic
- Pollution degree 2
- IP20 degree of protection
- Connectable conductor cross section solid-core: 0.75-16 mm²
- Connectable conductor cross section multi-wired: 0.75-10 mm²
- With interlocking device
Professional Installation Requirements
- Installation must be performed by a qualified electrician to ensure compliance with electrical safety standards and proper integration into the electrical panel.
Applications
- Residential electrical panels
- Small commercial electrical panels
- Photovoltaic system protection
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enhances electrical safety reducing risk of electrical fires and faults
- Supports photovoltaic system safety contributing to renewable energy use
Warranty Information
Legrand offers a standard 2-year warranty covering manufacturing defects.
Available Now
The Legrand RCBO DX³ 6000 20A 30mA AC Type is available for immediate purchase, ideal for residential and small commercial electrical panel protection including photovoltaic systems.
