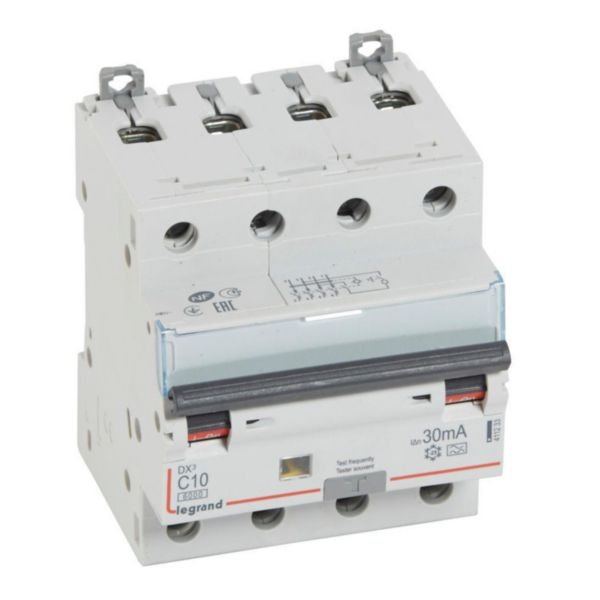

RCBO DX³ 6000 4P 10A 30mA Type A | 6 kA Breaking Capacity | IP20 Rated | @EA of 1 | by Legrand
The RCBO DX³ 6000 4P 10A 30mA Type A is a reliable residual current circuit breaker with integrated overcurrent protection, designed for 400 V AC systems. With a breaking capacity of 6 kA and IP20 protection, it's perfect for residential and small commercial electrical panels, ensuring safety against electrical faults and fires.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: RCBO DX³ 6000 4P 10A 30mA Type A | 6 kA Breaking Capacity | IP20 Rated | @EA of 1 | by Legrand
Brand: Legrand
SKU: 411233
Alternatively Known As: Residual Current Breaker with Overcurrent Protection, RCBO 4P 10A 30mA Type A, Legrand DX3 RCBO
Technical Specifications
- Number of poles: 4
- Rated voltage: 400 V AC
- Rated current: 10 A
- Residual current sensitivity: 30 mA (Type A)
- Breaking capacity: 6 kA
- Frequency: 50 Hz
- Release characteristic: C curve
- Pollution degree: 2
- Degree of protection: IP20
- Width: 4 modular spacings
- Built-in depth: 44 mm
- Surge current capacity: 0.25 kA
- Concurrently switching neutral conductor: Yes
- With interlocking device: Yes
- Dimensions (H x L x W): 83mm x 78mm x 71mm
- Weight: 0.3 kg
Key Features
- Residual current circuit breaker with integrated overcurrent protection
- 4-pole design suitable for 400 V AC systems
- Rated current of 10 A with 30 mA residual current sensitivity
- Type A leakage current detection (AC and pulsating DC faults)
- Breaking capacity of 6 kA according to IEC 61009-1
- Voltage independent tripping for reliable protection
- Compatible with DX³ signalling, remote tripping auxiliaries, and motorised controls
- C curve release characteristic for moderate inrush currents
- Pollution degree 2 and IP20 protection rating
- Equipped with interlocking device and neutral conductor switching
Professional Installation Requirements
- Installation must be performed by a qualified electrician to ensure compliance with electrical safety standards and proper integration into the electrical panel.
Applications
- Residential electrical panels
- Small commercial electrical panels
- Photovoltaic system protection
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- Enhances electrical safety reducing risk of electrical fires and faults
- Supports photovoltaic system safety contributing to renewable energy use
Warranty Information
Standard manufacturer warranty applies; typically 2 years against manufacturing defects.
Available Now
The Legrand RCBO DX³ 6000 4P 10A 30mA Type A is available for immediate purchase, ideal for residential and small commercial photovoltaic panel protection.
