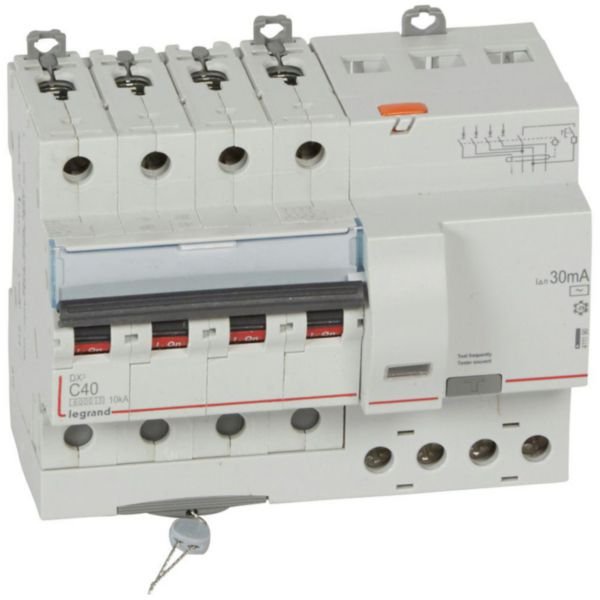

RCBO DX3 6000A 4 Pole 40A Curve C Type AC 30mA | 6kA Breaking Capacity | IP20 Rated | @Each of 1 | by Legrand
The RCBO DX3 6000A 4 Pole 40A Curve C Type AC 30mA is designed for reliable protection in residential and small commercial electrical panels. With a breaking capacity of 6kA and IP20 rating, it effectively safeguards against overload and residual current faults. Ideal for installations requiring compliance with AS/NZS 3000 standards, this device ensures safety and operational efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Number of poles: 4
- Rated current: 40 A
- Rated voltage: 400 V AC
- Rated fault current: 0.03 A (30mA)
- Leakage current type: AC
- Current limiting class: 3
- Rated short-circuit breaking capacity: 6 kA (EN 61009), 10 kA (IEC 60947-2)
- Surge current capacity: 0.25 kA
- Frequency: 50 Hz
- Release characteristic: Curve C
- Concurrently switching neutral conductor: Yes
- With interlocking device: Yes
- Pollution degree: 2
- Width: 7 modular spacings
- Built-in depth: 44 mm
- Degree of protection: IP20
- Connectable conductor cross section solid-core: 1-35 mm²
- Connectable conductor cross section multi-wired: 1-25 mm²
- Fitted with test button
- Dimensions (H x L x W): 85mm x 70mm x 126mm
- Weight: 0.5 kg
Key Features
- Breaking capacity 6000A according to IEC 61009-1 for household installations
- Breaking capacity 10kA according to IEC 60947-2
- Overcurrent tripping Curve C
- Rated voltage 400V~ 50Hz
- AC type for detection of AC residual currents
- Can be supplied by copper cable or prong busbar
- Fitted with test button for residual current function check
- IP20 protection against solid bodies larger than 12.5mm
- Fitted with DIN rail clamps for easy installation
- Label holder for clear circuit identification
- ON/OFF status indication on handle
Professional Installation Requirements
- Installation should be performed by a qualified electrician in compliance with installation rules to ensure safety and proper operation.
Applications
- Residential electrical panels
- Small commercial electrical panels
- Protection of electrical circuits against overload and residual current faults
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Designed with an environmentally conscious process
- Complies with substance-restriction requirements to reduce hazardous materials
Warranty Information
Warranty terms as provided by Legrand, typically 2 years against manufacturing defects.
Available Now
The Legrand RCBO DX3 6000A 4 Pole 40A Curve C Type AC 30mA is available for immediate purchase, ideal for residential and small commercial electrical panel protection.
