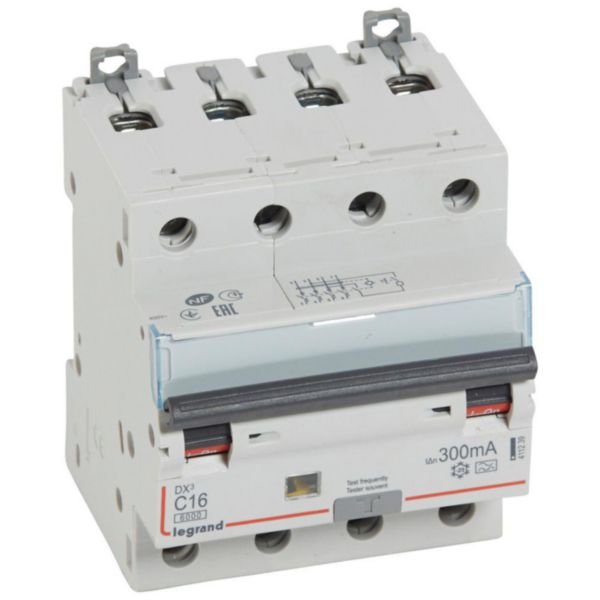

RCBO DX³ 6000A 4 Poles 16A Curve C Type A 300mA | IP20 Rated | 6000A Breaking Capacity | by Legrand
The RCBO DX³ 6000A 4 Poles 16A Curve C Type A 300mA is designed for reliable circuit protection in residential and small commercial applications. With a breaking capacity of 6000A and sensitivity to both AC and DC faults, this device ensures safety and compliance with AS/NZS 3000 standards. Ideal for photovoltaic systems and electrical installations, it features an IP20 rating and is easy to install with DIN rail clamps.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: RCBO DX³ 6000A 4 Poles 16A Curve C Type A 300mA | IP20 Rated | 6000A Breaking Capacity | by Legrand
Brand: Legrand
SKU: 411239
Alternatively Known As: Residual Current Breaker with Overcurrent Protection, RCBO 4 Pole 16A, Legrand DX3 RCBO, 4 Pole Circuit Breaker Type A
Technical Specifications
- Number of poles: 4
- Rated voltage: 400 V AC
- Rated current: 16 A
- Rated fault current: 0.3 A
- Leakage current type: Type A (AC and DC component detection)
- Current limiting class: 3
- Rated short-circuit breaking capacity: 6 kA
- Surge current capacity: 0.25 kA
- Frequency: 50 Hz
- Release characteristic: Curve C
- Concurrently switching neutral conductor: Yes
- With interlocking device: Yes
- Pollution degree: 2
- Built-in depth: 44 mm
- Degree of protection: IP20
- Dimensions (H x L x W): 83mm x 78mm x 71mm
- Weight: 0.3 kg
Key Features
- Breaking capacity 6000A according to IEC60898-1 standard
- Tripping Curve C for short circuit protection
- Sensitivity 300mA Type A for AC and DC component fault detection
- 4 poles with concurrent neutral conductor switching
- Fitted with test button for residual current function check
- IP20 protection against solid bodies larger than 12.5mm
- Can be supplied by wire prong busbar or Legrand HX3 plug busbar
- Width of 4 modules, compatible with DX3 auxiliaries
- On and OFF indication on handle with red and green backgrounds
- Label holder for clear circuit identification
- Fitted with two DIN rail clamps for easy installation and removal
Professional Installation Requirements
- Installation should be performed by a qualified electrician in compliance with installation rules to ensure safety and proper operation.
Applications
- Residential and small commercial electrical panels
- Photovoltaic system protection
- Circuit protection in AC electrical installations
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Designed with an environmentally conscious process
- Complies with substance-restriction requirements to reduce hazardous materials
Warranty Information
Warranty terms as per Legrand standard product warranty policy. Typically covers manufacturing defects for 2 years.
Available Now
The Legrand RCBO DX³ 6000A 4 Poles 16A Curve C Type A 300mA is available for immediate purchase, ideal for residential and small commercial photovoltaic panel protection.
