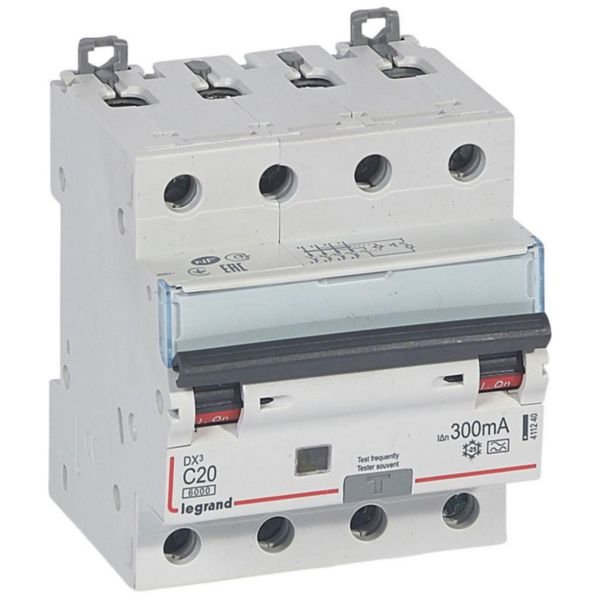

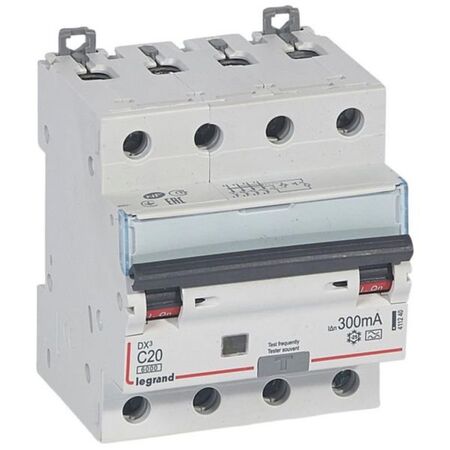

RCBO DX³ 6000A 4 Poles 20A Curve C Type A 300mA | IP20 Rated | Type A Sensitivity | @Each of 1 | by Legrand
The RCBO DX³ 6000A 4 Poles 20A Curve C Type A 300mA is designed for reliable circuit protection in residential and small commercial electrical panels. With a breaking capacity of 6000A and Type A sensitivity for AC and DC fault detection, it ensures safety and compliance in your electrical installations. Ideal for photovoltaic systems, this device features a test button for easy functionality checks and is fitted with two DIN rail clamps for straightforward installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: RCBO DX³ 6000A 4 Poles 20A Curve C Type A 300mA | IP20 Rated | Type A Sensitivity | @Each of 1 | by Legrand
Brand: Legrand
SKU: 411240
Alternatively Known As: Residual Current Breaker with Overcurrent Protection, RCBO 4 Pole 20A, Type A RCBO, DX3 RCBO 6000A
Technical Specifications
- Number of poles: 4
- Rated voltage: 400 V AC
- Rated current: 20 A
- Rated residual current: 300 mA
- Breaking capacity: 6000 A
- Tripping curve: C
- Leakage current type: Type A (AC and DC component detection)
- Current limiting class: 3
- Surge current capacity: 0.25 kA
- Frequency: 50 Hz
- Concurrently switching neutral conductor: Yes
- With interlocking device: Yes
- Pollution degree: 2
- Degree of protection: IP20
- Width: 4 modular spacings (71.2 mm)
- Built-in depth: 44 mm
- Height: 83 mm
- Depth: 77.8 mm
- Anti-nuisance tripping version: No
- Dimensions (H x L x W): 83mm x 78mm x 71mm
- Weight: 0.3 kg
Key Features
- Breaking capacity 6000A according to IEC60898-1 standard
- Tripping Curve C for selective protection
- Type A sensitivity for detection of AC and DC component faults
- 4 poles with 20A rated current and 300mA rated residual current
- Fitted with test button for frequent tripping function checks
- Protected against solid bodies larger than 12.5mm (IP20)
- Can be supplied by wire prong busbar or Legrand HX3 plug busbar
- Fitted with two DIN rail clamps for easy installation and removal
- Label holder for clear circuit identification
- On/Off indication on handle with red and green backgrounds
Professional Installation Requirements
- Installation should be performed by a qualified electrician in compliance with installation rules to ensure safety and proper operation.
Applications
- Residential and small commercial electrical panels
- Photovoltaic system protection
- Circuit protection in AC electrical installations
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Designed with an environmentally conscious process
- Complies with substance-restriction requirements to reduce hazardous materials
Warranty Information
Legrand standard warranty applies; typically 2 years against manufacturing defects.
Available Now
The Legrand RCBO DX³ 6000A 4 Poles 20A Curve C Type A 300mA is available for immediate purchase, ideal for residential and small commercial panel protection including photovoltaic systems.
