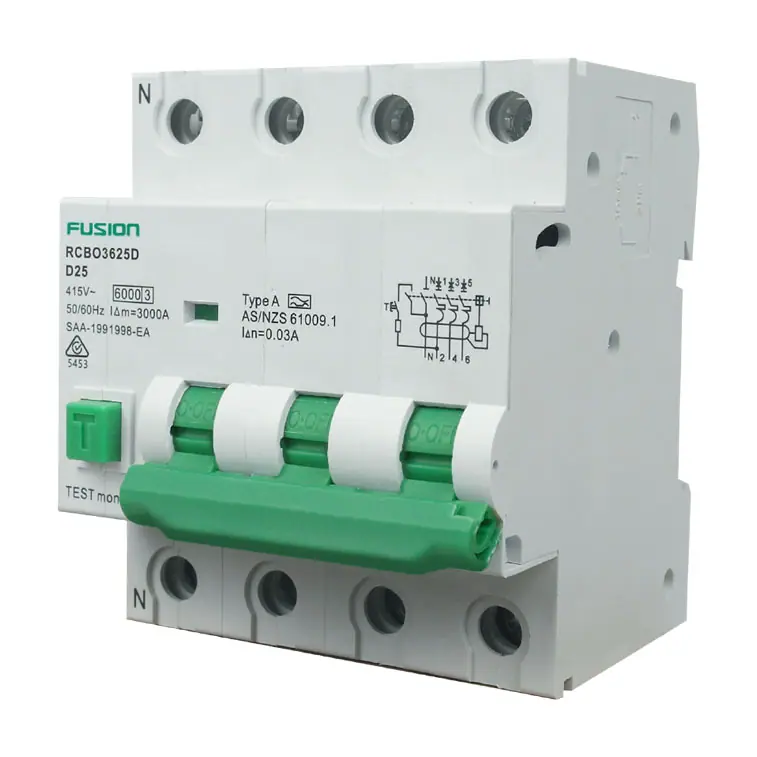

RCBO Electromagnetic 3P+N 6kA 415V AC 25A D Curve 30mA | Type A | by Connected Switchgear
The RCBO Electromagnetic 3P+N 6kA 415V AC 25A D Curve 30mA is designed for reliable electrical protection in residential, commercial, and industrial installations. With a breaking capacity of 6kA and a rated residual operating current of 30mA, it safeguards against earth leakage and overloads, ensuring safety and compliance with AS/NZS 61009.1 standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Residual Current Breaker with Overcurrent Protection, Electromagnetic RCBO, 3P+N RCBO, Type A RCBO
Technical Specifications
- Rated Current: 25A
- Rated Residual Operating Current: 30mA
- Trip Curve: D Curve
- Poles: 3P+N
- Breaking Capacity: 6kA
- Voltage: 415V AC
- Type: A (sensitive to AC and pulsating DC residual currents)
- Standard Compliance: AS/NZS 61009.1
- Dimensions (H x L x W): 85mm x 75mm x 70mm
- Weight: 0.3 kg
Key Features
- Electromagnetic residual current device with over current protection
- Designed to comply with AS/NZS 61009.1
- High-grade components for enhanced reliability
- Protection for both active and neutral conductors
- Rated current: 25A
- Rated residual operating current: 30mA
- D Curve trip characteristic
- 3 Pole + Neutral configuration
- Breaking capacity: 6kA
- Voltage rating: 415V AC
Professional Installation Requirements
- Installation must be performed by a licensed electrician to ensure compliance with electrical safety standards and proper device operation.
Applications
- Electrical protection in residential, commercial, and industrial electrical installations
- Protection against earth leakage, overload, and short circuit in active and neutral conductors
Standards & Compliance
- Complies with AS/NZS 61009.1 – Residual Current Devices (RCDs) including RCBOs
Environmental Benefits
- Enhances electrical safety reducing risk of electrical fires and faults
- Supports energy efficiency by preventing electrical faults and power losses
Warranty Information
Standard manufacturer warranty of 2 years against defects in materials and workmanship.
Available Now
The Connected Switchgear RCBO Electromagnetic 3P+N 6kA 415V AC 25A D Curve 30mA TYPE A is available for immediate purchase, ideal for electrical safety in residential, commercial, and industrial applications.
