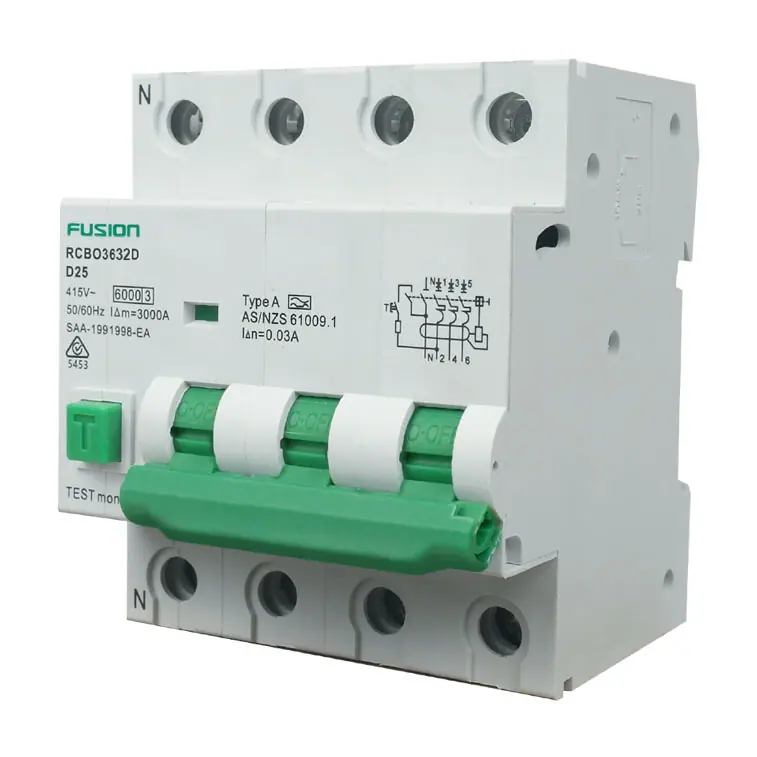

RCBO Electromagnetic 3P+N 6kA 415V AC 32A D Curve 30mA | Type A Protection | by Connected Switchgear
The RCBO Electromagnetic 3P+N 6kA 415V AC 32A D Curve 30mA is designed for industrial and commercial electrical systems, providing reliable earth leakage and overcurrent protection. With a 6kA breaking capacity and Type A sensitivity, it ensures safety and compliance with AS/NZS 61009.1 standards, making it ideal for critical electrical installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Residual Current Breaker with Overcurrent Protection, Electromagnetic RCBO, 3P+N RCBO, 32A RCBO, Type A RCBO
Technical Specifications
- Rated Current: 32A
- Rated Voltage: 415V AC
- Breaking Capacity: 6kA
- Pole Configuration: 3P+N
- Tripping Curve: D Curve
- Residual Current Sensitivity: 30mA Type A
- Standards Compliance: AS/NZS 61009.1
- Dimensions (H x L x W): 85mm x 70mm x 18mm
- Weight: 0.5 kg
Key Features
- Electromagnetic residual current device with overcurrent protection
- 6kA rated breaking capacity suitable for industrial and commercial use
- Protection for both active and neutral conductors
- Complies with AS/NZS 61009.1 for safety and performance
- Type A residual current protection with 30mA sensitivity
- D Curve tripping characteristic for high inrush current applications
Professional Installation Requirements
- Installation must be performed by a licensed electrician to ensure compliance with electrical safety standards and proper device operation.
Applications
- Industrial electrical installations requiring earth leakage protection
- Commercial electrical systems needing overload and short circuit protection
- Electrical panels requiring combined residual current and overcurrent protection
Standards & Compliance
- AS/NZS 61009.1 – Residual current operated circuit-breakers with integral overcurrent protection
Environmental Benefits
- Enhances electrical safety reducing risk of electrical fires and faults
- Supports energy efficiency by preventing electrical faults and overloads
Warranty Information
Standard manufacturer warranty applies, typically 1-2 years against manufacturing defects.
Available Now
The Connected Switchgear RCBO Electromagnetic 3P+N 6kA 415V AC 32A D Curve 30mA TYPE A is available for immediate purchase, ideal for industrial and commercial electrical protection applications.
