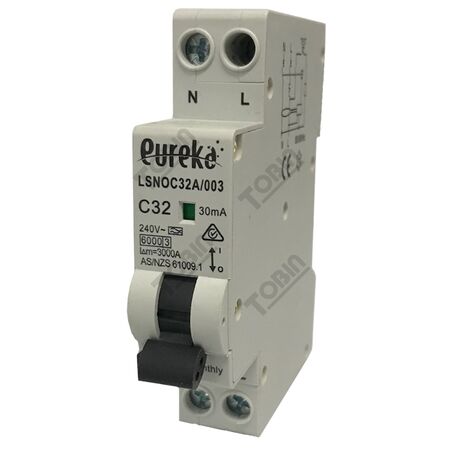

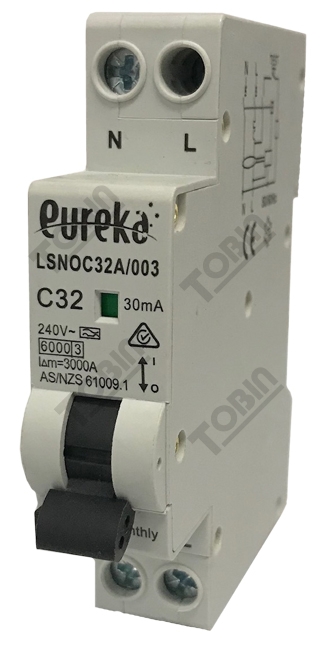

RCBO EUREKA 1 Pole Compact 32A C Curve 6kA 30mA | Earth Leakage Protection | by Tobin

BRAND: Tobin
SKU: LSNOC32A-003
$62.20 List price: $75.20
+
The RCBO EUREKA 1 Pole Compact 32A C Curve 6kA 30mA is designed for effective electrical circuit protection, featuring a 32A current rating and a C Curve tripping characteristic. Ideal for residential, commercial, and industrial applications, it ensures safety against earth leakage with its 30mA sensitivity, making it a reliable choice for licensed electricians.

Product Name/Title: RCBO EUREKA 1 Pole Compact 32A C Curve 6kA 30mA | Earth Leakage Protection | by Tobin

Brand: Tobin

SKU: LSNOC32A-003

Alternatively Known As: Residual Current Breaker with Overcurrent, RCBO 32A, Compact RCBO, 1 Pole RCBO

Technical Specifications
  • Pole: 1
  • Current Rating: 32A
  • Tripping Curve: C Curve
  • Breaking Capacity: 6kA
  • Residual Current: 30mA
  • Dimensions (H x L x W): 85mm x 70mm x 18mm
  • Weight: 0.2 kg
Key Features
  • Compact 1 pole design
  • 32 Ampere current rating
  • C Curve tripping characteristic
  • 6kA short circuit breaking capacity
  • 30mA residual current sensitivity for earth leakage protection
Professional Installation Requirements
  • Installation must be performed by a licensed electrician to ensure compliance with electrical safety standards.
Applications
  • Residential electrical circuit protection
  • Commercial electrical installations
  • Industrial electrical safety systems
Standards & Compliance
  • Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Enhances electrical safety reducing risk of electrical fires and faults
  • Supports energy efficiency by preventing electrical faults
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Tobin RCBO 1 Pole Compact 32A C Curve 6kA 30mA is available now for immediate purchase. Ideal for enhancing electrical safety in residential, commercial, and industrial applications.
