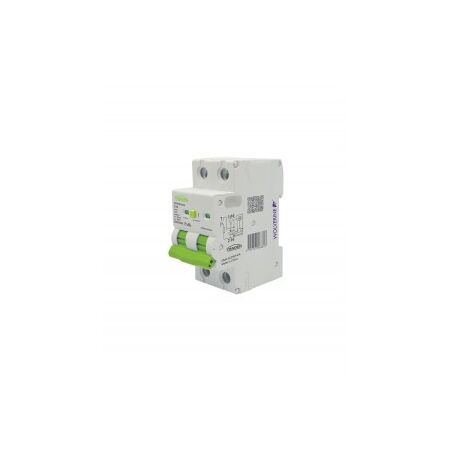

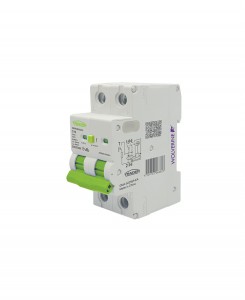

RCBO Residual Current Breaker 10A 2 Pole | 6kA Breaking Capacity | 30mA Type A | by Trader
The RCBO Residual Current Breaker with Overcurrent Protection is designed for reliable electrical safety, featuring a 10A rated current and a 6kA breaking capacity. Ideal for residential, commercial, and industrial applications, this device combines residual current and overcurrent protection in one compact 2-module wide unit, ensuring enhanced personal safety with a 30mA trip threshold.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Residual Current Breaker with Overcurrent Protection, RCBO 10A 2 Pole, Type A RCBO, 30mA Earth Leakage Breaker
Technical Specifications
- Rated Current: 10A
- Poles: 2 Pole
- Voltage: 230-240V AC
- Residual Current Rating: 30mA
- Type: Type A (AC and pulsating DC detection)
- Breaking Capacity: 6kA
- Module Width: 2 modules
- Dimensions (H x L x W): 85mm x 70mm x 36mm
- Weight: 0.2 kg
Key Features
- Combined residual current and overcurrent protection in one device
- Rated breaking capacity of 6kA for reliable fault interruption
- Type A sensitivity for detection of AC and pulsating DC residual currents
- 30mA residual current trip threshold for enhanced personal protection
- Compact 2 module wide design for space-saving installation
Professional Installation Requirements
- Installation must be performed by a licensed electrician to ensure compliance with electrical safety standards and proper device operation.
Applications
- Residential electrical circuits for protection against earth leakage and overcurrent
- Commercial electrical installations requiring combined residual current and overcurrent protection
- Industrial control panels and distribution boards
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Helps prevent electrical fires and reduces energy waste by quickly disconnecting faulty circuits
- Supports safer electrical installations reducing risk of damage and environmental hazards
Warranty Information
1 year warranty covering manufacturing defects and performance issues.
Available Now
The Trader RCBO Residual Current Breaker 6kA 2 Pole 10A 230-240V AC 30mA Type A is available for immediate purchase, ideal for residential, commercial, and industrial electrical safety applications.
