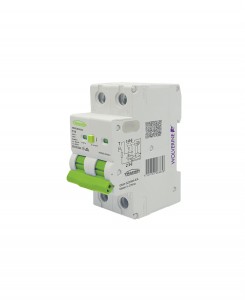

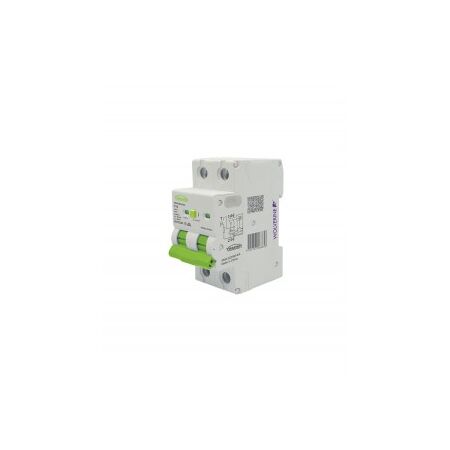

RCBO Residual Current Breaker 16A 2 Pole | 30mA Sensitivity | 6kA Breaking Capacity | by Trader
The RCBO Residual Current Breaker with Overcurrent Protection is designed for reliable electrical safety, featuring a 16A rated current and 30mA sensitivity. Ideal for residential, commercial, and industrial applications, this 2-pole device ensures protection against electrical faults with a 6kA breaking capacity. Its compact design allows for easy installation in standard panels, making it a must-have for any electrical system.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Residual Current Breaker with Overcurrent Protection, RCBO 16A 2 Pole, Type A RCBO, 30mA Residual Current Device
Technical Specifications
- Rated Current: 16A
- Poles: 2
- Rated Voltage: 230-240V AC
- Residual Current Sensitivity: 30mA
- Type: Type A (AC and pulsating DC detection)
- Breaking Capacity: 6kA
- Module Width: 2 modules
- Dimensions (H x L x W): 85mm x 70mm x 36mm
- Weight: 0.2 kg
Key Features
- Residual current protection with 30mA sensitivity
- Overcurrent protection up to 16A
- 2 pole design for single-phase circuits
- Type A for detection of AC and pulsating DC residual currents
- 6kA short circuit breaking capacity
- Compact 2 module wide size for easy panel installation
Professional Installation Requirements
- Installation must be performed by a licensed electrician to ensure compliance with electrical safety standards and proper operation.
Applications
- Residential electrical circuit protection
- Commercial electrical installations
- Industrial electrical safety systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enhances electrical safety reducing risk of electrical fires and faults
- Supports energy-efficient electrical system protection
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Trader RCBO Residual Current Breaker with Overcurrent Protection is available for immediate purchase, ideal for enhancing electrical safety in residential, commercial, and industrial electrical systems.
