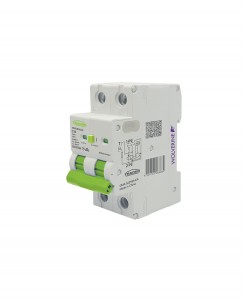

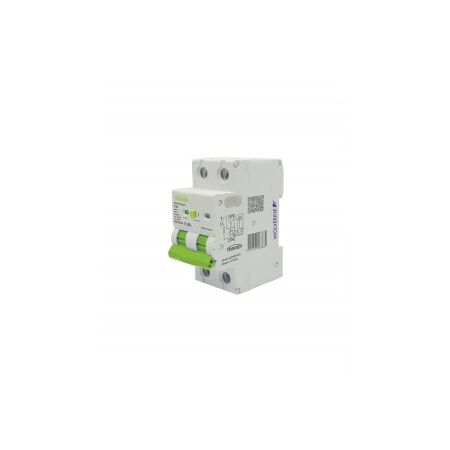

RCBO Residual Current Breaker 20A | 30mA Sensitivity | 6kA Breaking Capacity | 2 Pole Design | by Trader
The RCBO Residual Current Breaker with Overcurrent Protection is designed for reliable electrical safety, featuring a 20A rated current and 30mA sensitivity. Ideal for residential, commercial, and industrial applications, this 2 pole device ensures protection against electrical faults and enhances safety in electrical installations. With a compact 2 module width, it’s easy to install and complies with AS/NZS 3000 standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Residual Current Breaker with Overcurrent Protection, RCBO 20A Type A, Residual Current Device with Overcurrent, 2 Pole RCBO
Technical Specifications
- Rated Current: 20A
- Rated Voltage: 230-240V AC
- Pole: 2 Pole
- Residual Current Sensitivity: 30mA
- Type: Type A (AC and pulsating DC detection)
- Breaking Capacity: 6kA
- Module Width: 2 modules
- Dimensions (H x L x W): 85mm x 70mm x 36mm
- Weight: 0.2 kg
Key Features
- Residual current protection with 30mA sensitivity
- Overcurrent protection up to 20A
- 2 pole design for single-phase circuits
- Type A for detection of AC and pulsating DC residual currents
- 6kA short circuit breaking capacity
- Compact 2 module wide size for easy installation
Professional Installation Requirements
- Installation must be performed by a licensed electrician to ensure compliance with electrical safety standards and proper operation.
Applications
- Residential electrical distribution boards
- Commercial electrical panels
- Industrial electrical safety systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enhances electrical safety reducing risk of electrical fires and faults
- Helps prevent electrical accidents contributing to safer energy use
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Trader RCBO Residual Current Breaker with Overcurrent Protection 6kA 2 Pole 20A 230-240V AC 30mA Type A 2 Module Wide is available for immediate purchase, ideal for enhancing electrical safety in residential, commercial, and industrial electrical installations.
