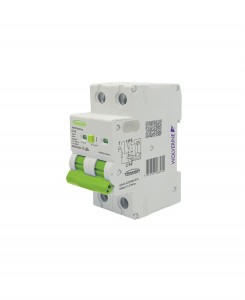

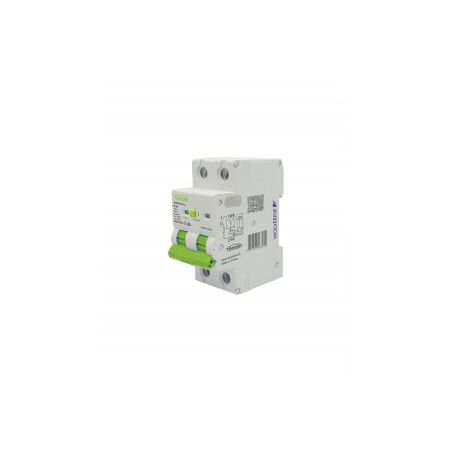

RCBO Residual Current Breaker 32A | 6kA Overcurrent Protection | 30mA Sensitivity | 2 Pole Design | by Trader
The RCBO Residual Current Breaker with Overcurrent Protection is designed for reliable electrical safety, featuring a 32A rating and 30mA sensitivity. Ideal for residential, commercial, and industrial applications, this 2-pole device ensures protection against electrical faults and overloads, enhancing safety in your electrical systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Residual Current Breaker with Overcurrent Protection, RCBO 32A 2 Pole, Type A RCBO, 30mA Residual Current Device
Technical Specifications
- Rated Current: 32A
- Poles: 2
- Rated Voltage: 230-240V AC
- Residual Current Sensitivity: 30mA
- Type: Type A (AC and pulsating DC detection)
- Breaking Capacity: 6kA
- Modules Wide: 2
- Dimensions (H x L x W): 85mm x 70mm x 36mm
- Weight: 0.2 kg
Key Features
- Residual current protection with 30mA sensitivity
- Overcurrent protection up to 32A
- 2 pole design for single-phase circuits
- Type A for detection of AC and pulsating DC residual currents
- 6kA short circuit breaking capacity
- Compact 2 module wide design for easy installation
Professional Installation Requirements
- Installation must be performed by a licensed electrician to ensure compliance with electrical safety standards and proper operation.
Applications
- Residential electrical distribution boards
- Commercial electrical installations
- Industrial electrical safety systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enhances electrical safety reducing risk of electrical fires and faults
- Supports energy efficiency by preventing electrical faults and overloads
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Trader RCBO Residual Current Breaker with Overcurrent Protection is available for immediate purchase, ideal for enhancing electrical safety in residential, commercial, and industrial electrical systems.
