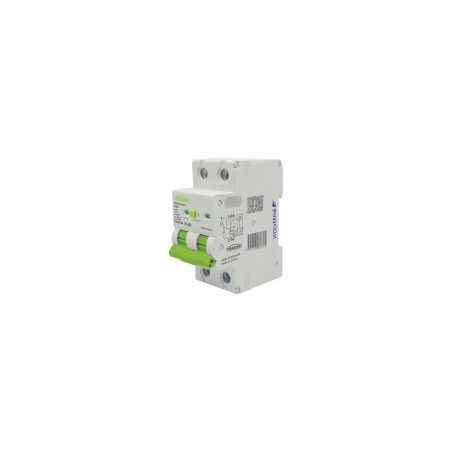

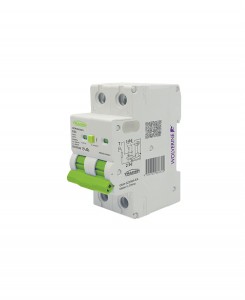

RCBO Residual Current Breaker 63A | 30mA Sensitivity | 6kA Breaking Capacity | 2 Pole Design | by Trader
The RCBO Residual Current Breaker with Overcurrent Protection is designed for enhanced electrical safety, featuring a 30mA sensitivity and a 6kA breaking capacity. Ideal for residential, commercial, and industrial applications, this 2 pole device ensures reliable protection against electrical faults, making it essential for any electrical distribution board.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Residual Current Breaker with Overcurrent Protection, RCBO 63A 2 Pole, Type A RCBO, 30mA Residual Current Device
Technical Specifications
- Rated Current: 63A
- Poles: 2
- Rated Voltage: 230-240V AC
- Residual Current Sensitivity: 30mA
- Type: Type A (AC and pulsating DC detection)
- Breaking Capacity: 6kA
- Modules Wide: 2
- Dimensions (H x L x W): 85mm x 70mm x 36mm
- Weight: 0.3 kg
Key Features
- Residual current protection with 30mA sensitivity for enhanced safety
- Overcurrent protection up to 63A
- 2 pole design suitable for single-phase circuits
- Type A for detection of AC and pulsating DC residual currents
- 6kA short circuit breaking capacity
- Compact 2 module wide design for space-saving installation
Professional Installation Requirements
- Installation must be performed by a licensed electrician to ensure compliance with electrical safety standards and proper operation.
Applications
- Residential electrical distribution boards
- Commercial electrical installations
- Industrial electrical safety systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Prevents electrical faults that can cause fires, reducing environmental damage
- Enhances energy safety and reduces risk of electrical accidents
Warranty Information
1 year warranty covering manufacturing defects and performance issues.
Available Now
The Trader RCBO Residual Current Breaker with Overcurrent Protection is available for immediate purchase, ideal for enhancing electrical safety in residential, commercial, and industrial applications.
