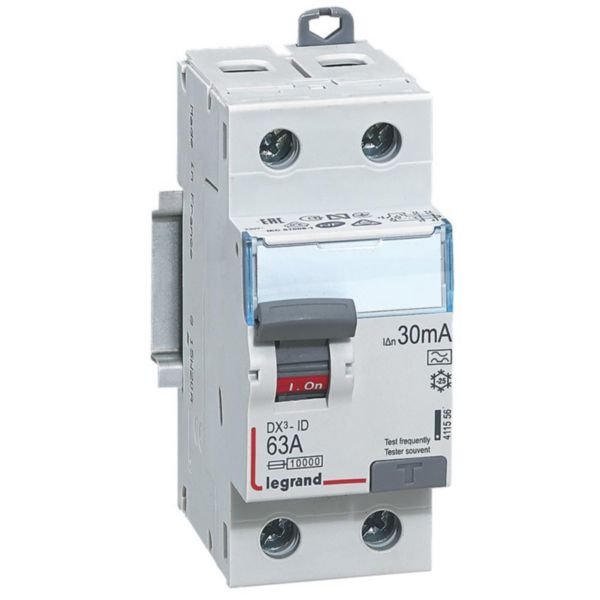

RCCB DX³ 2 Pole 63A Type A 30mA | IP20 Rated | DIN Rail Mount | @EA of 1 | by Legrand
RCCB DX³ 2 Pole 63A Type A 30mA is designed to protect against electric shock and fire hazards, making it ideal for residential and small commercial electrical panels. With A-type detection for both AC and DC faults, this device features screw terminals for easy installation and a test button for regular checks, ensuring safety and reliability in your electrical systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: RCCB DX³ 2 Pole 63A Type A 30mA | IP20 Rated | DIN Rail Mount | @EA of 1 | by Legrand
Brand: Legrand
SKU: 411556
Alternatively Known As: Residual Current Circuit Breaker, RCCB 2 Pole 63A, Type A RCD, Earth Leakage Circuit Breaker, DX3 RCCB
Technical Specifications
- Number of poles: 2
- Rated voltage: 230 V
- Rated current: 63 A
- Rated fault current: 0.03 A (30mA)
- Rated insulation voltage Ui: 250 V
- Rated impulse withstand voltage Uimp: 4 kV
- Mounting method: DIN rail
- Leakage current type: A (AC and DC component detection)
- Short-circuit breaking capacity (Icw): 10 kA
- Surge current capacity: 0.25 kA
- Voltage type: AC
- Frequency: 50 Hz
- Degree of protection (IP): IP20
- Width in modular spacings: 2
- Built-in depth: 44 mm
- Operating ambient temperature: -25 to 60 °C
- Pollution degree: 2
- Connectable conductor cross section multi-wired: 0.75-35 mm²
- Connectable conductor cross section solid-core: 0.75-50 mm²
- Degree of impact strength (IK): IK04
- Storage temperature: -40 to 70 °C
- Connection type: Screwed terminal, busbar and cable
- Label space for circuit identification
- Dimensions (H x L x W): 95mm x 78mm x 36mm
- Weight: 0.2 kg
Key Features
- Protects against direct and indirect electric shock hazards
- Provides fire hazard protection due to persistent earth fault current
- A-type detection for AC and DC component faults
- Screw terminals for cable connections on top and bottom
- Fitted with a test button for frequent tripping checks
- DIN rail mounting with clamps on top and bottom
- On/Off status indication with red and green backgrounds
- Label holder for clear circuit identification
- IP20 protection against solid bodies larger than 12.5mm
- Halogen free design
- With interlocking device
Professional Installation Requirements
- Installation should be performed by a qualified electrician in compliance with local electrical installation rules to ensure safety and proper operation.
Applications
- Residential and small commercial electrical panels
- Photovoltaic system protection
- Electrical installations requiring residual current protection
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Designed with an environmentally conscious process
- Halogen free materials reduce environmental impact
- Helps prevent electrical fires, contributing to safety and sustainability
Warranty Information
Standard manufacturer warranty applies; refer to Legrand for specific warranty terms.
Available Now
Legrand RCCB DX³ 2 Pole 63A Type A 30mA Screw Terminals is available for immediate purchase, ideal for residential and small commercial electrical panel protection including photovoltaic systems.
