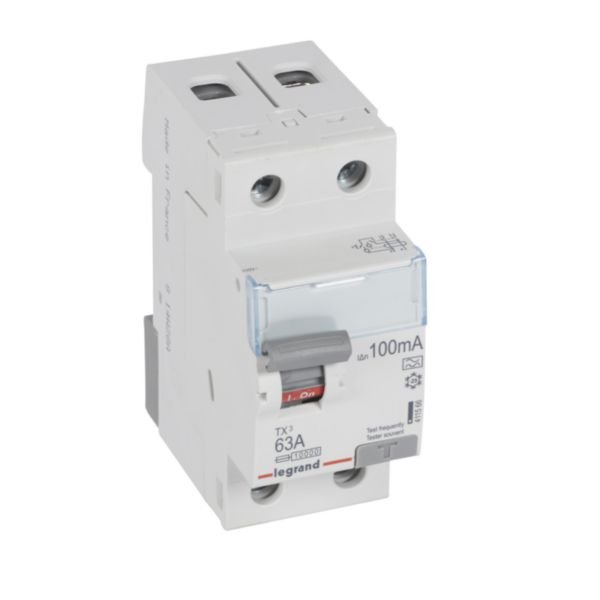

RCCB TX³ 2P 230V | 100mA Sensitivity | 63A Rated Current | IP20 Protection | @EA of 1 | by Legrand
RCCB TX³ 2P 230V is a reliable residual current circuit breaker designed for residential and small commercial electrical panels. With a sensitivity of 100mA and a rated current of 63A, it ensures optimal protection against electrical faults. Its IP20 rating and halogen-free materials enhance safety and environmental compliance, making it a smart choice for any installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: RCCB TX³ 2P 230V | 100mA Sensitivity | 63A Rated Current | IP20 Protection | @EA of 1 | by Legrand
Brand: Legrand
SKU: 411566
Alternatively Known As: Residual Current Circuit Breaker, RCCB, Earth Leakage Circuit Breaker, RCD, TX3 RCCB
Technical Specifications
- Number of poles: 2
- Rated voltage: 230 V AC
- Rated current: 63 A
- Rated fault current sensitivity: 100 mA
- Rated insulation voltage Ui: 250 V
- Rated impulse withstand voltage Uimp: 4 kV
- Mounting method: DIN rail
- Leakage current type: A (AC and DC components)
- Short-circuit breaking capacity (Icw): 10 kA
- Surge current capacity: 0.25 kA
- Frequency: 50 Hz
- Degree of protection: IP20
- Operating ambient temperature: -25 to 60 °C
- Pollution degree: 2
- Connectable conductor cross section multi-wired: 0.75-35 mm²
- Connectable conductor cross section solid-core: 0.75-50 mm²
- Colour: Grey (RAL 7035)
- Degree of impact strength (IK): IK04
- Storage temperature: -40 to 70 °C
- Nominal voltage range: 130-250 V
- Connection type: Screwed terminal, busbar and cable
- With interlocking device: Yes
- Halogen free: Yes
- Dimensions (H x L x W): 89mm x 78mm x 36mm
- Weight: 0.2 kg
Key Features
- 2-pole residual current circuit breaker
- Rated current: 63 A
- Sensitivity: 100 mA
- Type A leakage current detection (AC and DC components)
- Conforms to IEC 61008-1
- Mounting on DIN rail
- Short-circuit breaking capacity: 10 kA
- IP20 degree of protection
- Halogen free
- Screwed terminal and busbar connection
Professional Installation Requirements
- Installation must be performed by a qualified electrician to ensure compliance with safety standards and proper operation.
Applications
- Residential electrical panels
- Small commercial electrical panels
- Residual current protection in electrical installations
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Helps prevent electrical fires and reduces risk of electrical shock, enhancing safety.
- Halogen-free materials reduce environmental impact in case of disposal.
Warranty Information
Standard manufacturer warranty applies, typically 2 years against manufacturing defects.
Available Now
Legrand RCCB TX³ 2P 230V 100mA 63A Type A is available for immediate purchase, ideal for residential and small commercial electrical panel protection.
