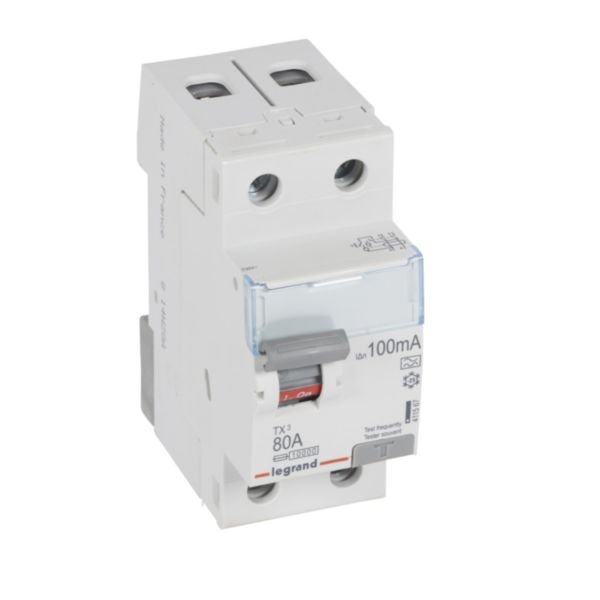

RCCB TX³ 2P 230V | 100mA Sensitivity | 80A Rated Current | Type A | @EA of 1 | by Legrand
RCCB TX³ 2P 230V is a reliable residual current circuit breaker designed for residential and small commercial electrical panels. With a sensitivity of 100mA and a rated current of 80A, it effectively detects AC and DC component faults, ensuring safety in electrical installations. Built for durability and compliance with IEC 61008-1 standards, this Type A RCCB is perfect for preventing electrical faults and enhancing safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: RCCB TX³ 2P 230V | 100mA Sensitivity | 80A Rated Current | Type A | @EA of 1 | by Legrand
Brand: Legrand
SKU: 411567
Alternatively Known As: Residual Current Circuit Breaker, RCCB, TX3 RCCB, Type A RCCB, 2 Pole RCCB
Technical Specifications
- Number of poles: 2
- Rated voltage: 230 V AC
- Rated current: 80 A
- Sensitivity: 100 mA
- Rated fault current: 0.1 A
- Rated insulation voltage Ui: 250 V
- Rated impulse withstand voltage Uimp: 4 kV
- Mounting method: DIN rail
- Leakage current type: A
- Short-circuit breaking capacity (Icw): 10 kA
- Surge current capacity: 0.25 kA
- Frequency: 50 Hz
- Degree of protection (IP): IP20
- Width in modular spacings: 2
- Built-in depth: 44 mm
- Operating ambient temperature: -25 to 60 °C
- Pollution degree: 2
- Connectable conductor cross section multi-wired: 0.75-35 mm²
- Connectable conductor cross section solid-core: 0.75-50 mm²
- Colour: Grey (RAL 7035)
- Degree of impact strength (IK): IK04
- Storage temperature: -40 to 70 °C
- Nominal voltage: 130-250 V
- Electric supplying direction: By the top or bottom
- Connection type: Screwed terminal, Busbar and cable
- Halogen free: Yes
- Dimensions (H x L x W): 89mm x 78mm x 36mm
- Weight: 0.3 kg
Key Features
- Residual current circuit breaker with 2 poles
- Rated current of 80 A and sensitivity of 100 mA
- Type A detects AC and DC component faults
- Conforms to IEC 61008-1 standard
- Compatible with prong-type and fork-type supply busbars
- Mounting on DIN rail
- Short-circuit breaking capacity of 10 kA
- IP20 degree of protection
- Halogen free
- With interlocking device
Professional Installation Requirements
- Installation must be performed by a qualified electrician to ensure compliance with safety standards and proper operation.
Applications
- Residential electrical panels
- Small commercial electrical panels
- Residual current protection in electrical installations
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Helps prevent electrical faults that can cause fires, enhancing safety and reducing environmental damage.
- Halogen-free materials reduce toxic emissions in case of fire.
Warranty Information
Standard manufacturer warranty applies. Please refer to Legrand for specific warranty terms.
Available Now
Legrand RCCB TX³ 2P 230V 100mA 80A Type A is available for immediate purchase, ideal for residential and small commercial electrical panel protection.
