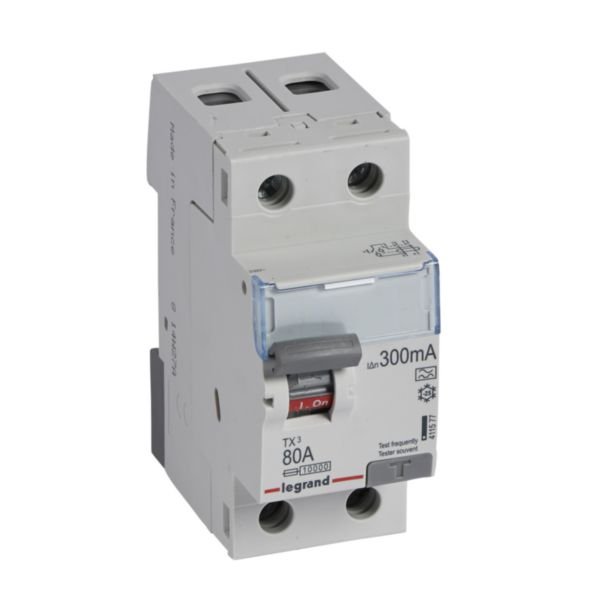

RCCB TX³ 2P 230V AC | 300mA Residual Current Protection | 80A Type A | @Each of 1 | by Legrand
RCCB TX³ 2P 230V AC is designed for effective residual current protection, featuring a rated current of 80A and a residual operating current of 300mA. Ideal for residential and small commercial electrical panels, this Type A circuit breaker detects both AC and DC faults, ensuring safety and compliance with IEC 61008-1 standards. With a robust IP20 rating and DIN rail mounting, it’s built for reliability in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: RCCB TX³ 2P 230V AC | 300mA Residual Current Protection | 80A Type A | @Each of 1 | by Legrand
Brand: Legrand
SKU: 411577
Alternatively Known As: Residual Current Circuit Breaker, RCCB, Earth Leakage Circuit Breaker, RCD, TX3 RCCB, Type A RCCB
Technical Specifications
- Number of poles: 2
- Rated voltage: 230 V AC
- Rated current: 80 A
- Rated residual operating current: 300 mA
- Rated insulation voltage Ui: 250 V
- Rated impulse withstand voltage Uimp: 4 kV
- Short-circuit breaking capacity (Icw): 10 kA
- Surge current capacity: 0.25 kA
- Frequency: 50 Hz
- Degree of protection: IP20
- Mounting method: DIN rail
- Connection type: Screwed terminal, busbar and cable
- Operating ambient temperature: -25 to 60 °C
- Pollution degree: 2
- Halogen free: Yes
- Degree of impact strength (IK): IK04
- Dimensions (H x L x W): 89mm x 78mm x 36mm
- Weight: 0.3 kg
Key Features
- Residual current circuit breaker with 2 poles and 230 V AC voltage
- Type A sensitivity detecting AC and DC component faults
- Rated current of 80 A and rated residual operating current of 300 mA
- Conforms to IEC 61008-1 standard
- Compatible with prong-type and fork-type supply busbars
- Short-circuit breaking capacity of 10 kA
- IP20 degree of protection
- Mounting on DIN rail
- Halogen free construction
- Screwed terminal, busbar and cable connection types
- Operating ambient temperature range from -25°C to 60°C
Professional Installation Requirements
- Installation must be performed by a licensed electrician to ensure compliance with electrical safety standards and proper integration into the electrical panel.
Applications
- Residential electrical panels
- Small commercial electrical panels
- Residual current protection in electrical installations
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Helps prevent electrical fires and reduces energy waste by detecting leakage currents
- Halogen free materials reduce environmental impact in case of disposal
Warranty Information
Legrand standard warranty applies, typically 2 years against manufacturing defects.
Available Now
The Legrand RCCB TX³ 2P 230V 300mA 80A Type A is available for immediate purchase, ideal for residential and small commercial electrical panel protection.
