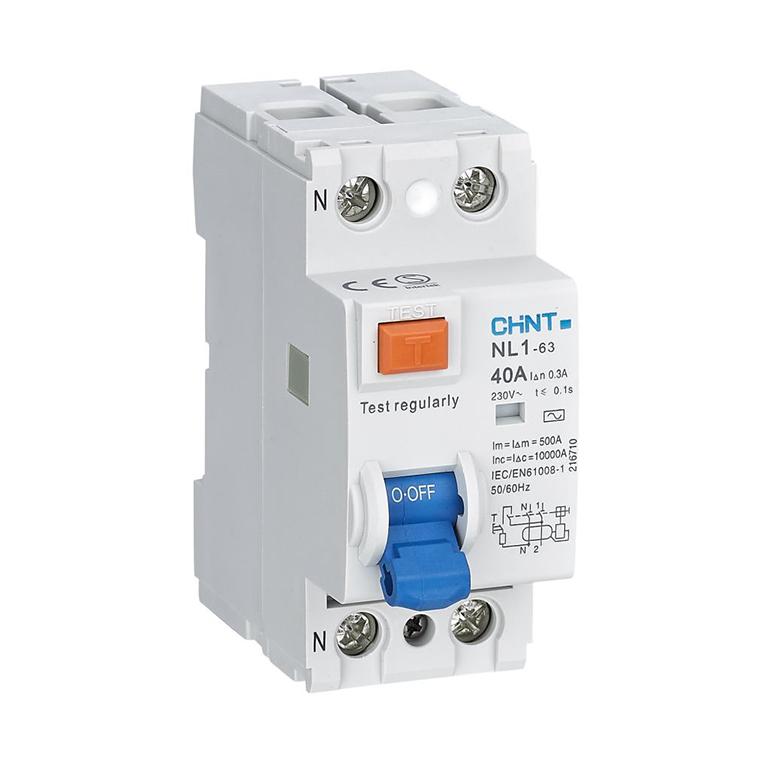

RCD 2 Pole 40A 6kA | 30mA Type A | High Immunity by Chint Global

BRAND: Zhejiang Chint Electrics
SKU: 200210
$29.90 List price: $32.10
+ −
30 Days Return Delivery Options
RCD 2 pole with 40A current and 30mA sensitivity—ideal for residential and commercial safety. Built for protection against electrical faults, with high immunity to spurious tripping.

Product Name/Title: RCD 2pole 40a 6ka 30ma Type A

Brand: Chint Global

SKU: 200210

Alternatively Known As: Residual Current Device, RCD, RCCB, Circuit Breaker

Technical Specifications
  • Type: 2 Pole
  • Rated Current: 40A
  • Rated Residual Current: 30mA
  • Rated Voltage: 230V
  • Breaking Capacity: 6kA
  • Tripping Characteristics: Type A
  • Dimensions (H x L x W): 80mm x 70mm x 100mm
  • Weight: 1.0 kg
Key Features
  • Protects against indirect and direct electrical contacts.
  • Prevents fire hazards due to insulation faults.
  • Suitable for housing, tertiary sector, and industrial applications.
  • High immunity to spurious tripping caused by harmonics and transient surges.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Residential: Homes, apartments
  • Commercial: Tertiary sector, industry
Standards & Compliance
  • Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
  • Enhances safety in electrical installations, reducing the risk of fire and electrical accidents.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The RCD 2pole 40a 6ka 30ma Type A is available now for immediate purchase. Ideal for residential and commercial electrical safety applications.
