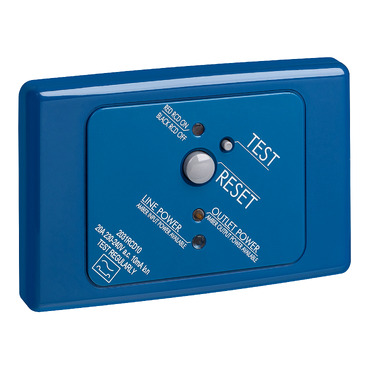

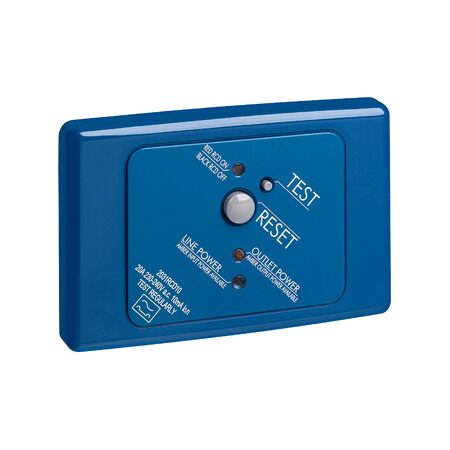

RCD 2P 10mA 20A 250V D/Blue | High Sensitivity | Fast Tripping Time | DIN Rail Mount | @Pack of 1 | by Clipsal
The RCD 2P 10mA 20A 250V D/Blue is a high-sensitivity residual current device designed for enhanced electrical safety in residential, commercial, and healthcare environments. With a fast tripping time of less than 30ms and a blue test button for easy identification, this device ensures personal protection against electric shock. Ideal for installations requiring compliance with safety standards, it’s a reliable choice for licensed electricians.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: RCD 2P 10mA 20A 250V D/Blue | High Sensitivity | Fast Tripping Time | DIN Rail Mount | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: MEDML2031RCD10DB
Alternatively Known As: Clipsal MEDML2031RCD10DB, Clipsal 10mA RCD, Clipsal 2 Pole RCD, Clipsal Medical RCD, Residual Current Device 20A 10mA, Safety Switch 2P 10mA
Technical Specifications
- Type: Residual Current Device (RCD)
- Poles: 2 (Double Pole)
- Rated Current: 20A
- Rated Voltage: 250V AC
- Sensitivity: 10mA
- Test Button: Blue
- Mounting: DIN rail
- Tripping Time: <30ms at rated residual current
- Operating Temperature: -5°C to +40°C
- Dimensions (H x L x W): 85mm x 70mm x 45mm
- Weight: 0.25 kg
Key Features
- 2 pole (2P) residual current device (RCD) for double pole protection
- 10mA high sensitivity for personal protection, ideal for medical and healthcare environments
- 20A current rating suitable for various circuits
- 250V AC rated voltage
- Blue test button for easy identification
- Complies with medical and general electrical safety requirements
- Fast tripping time for enhanced safety
Professional Installation Requirements
- Installation must be carried out by a licensed electrician in accordance with AS/NZS 3000 and local regulations.
Applications
- Residential: Homes, apartments, and units for personal protection
- Commercial: Offices, retail, and hospitality environments
- Healthcare: Medical clinics and hospitals requiring high-sensitivity RCDs
- General: Any installation requiring enhanced electrical safety and protection against electric shock
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3190 – Approval and test specification – Residual current devices (current-operated earth-leakage devices)
Environmental Benefits
- Enhances electrical safety, reducing risk of electrical fires and personal injury
- Supports compliance with modern safety standards, promoting safer environments
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal RCD 2P 10mA 20A 250V MEDML2031RCD10DB is available for immediate purchase. Ideal for residential, commercial, and healthcare applications requiring high-sensitivity electrical protection.
