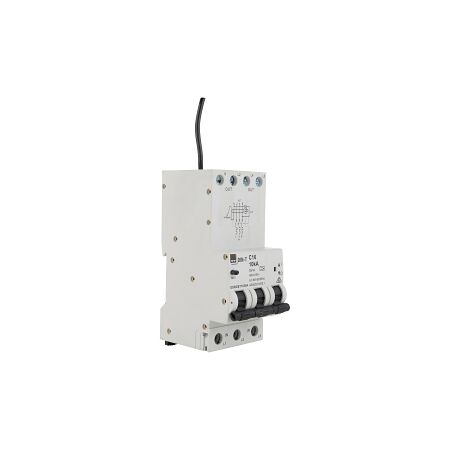

RCD 3P+N 63A 10kA C Curve 100mA Type A 54mm DIN-T 415V Grey NHP

BRAND: NHP
SKU: DSRCBT63100A
$717.90 List price: $894.60
+ −
30 Days Return Electricians Unlock Trade Access
NHP RCD features 3-pole + neutral, 63A rating, 10kA breaking capacity, C-curve tripping, 100mA sensitivity, Type A protection, and IP20 rating.
Technical Specifications
  • Rated Current: 63 A
  • Rated Voltage: 415 V
  • Frequency: 50/60 Hz
  • Rated Impulse Withstand Voltage: 4 kV
  • Tripping Time: 300 ms
  • Electrical Life: 10,000 cycles
  • Mechanical Life: 20,000 cycles
  • Degree of Protection: IP20
  • Operating Temperature: -5 to 55 °C
  • Dimensions (H x L x W): 117mm x 71mm x 54mm
  • Weight: 0.55 kg
Key Features
  • 10kA short circuit breaking capacity
  • Rated leakage current of 100mA
  • C curve tripping characteristic
  • DIN rail mounting for easy installation
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Residential: Homes, apartments, and small buildings
  • Commercial: Offices, retail spaces, and industrial applications
Standards & Compliance
  • Complies with AS/NZS 61009 for safety and performance standards.
Environmental Benefits
  • Enhances electrical safety, reducing the risk of electrical fires and accidents.
Warranty Information

2 years warranty against manufacturing defects.

Available Now

The NHP DIN-T Residual Current Device is available now for immediate purchase. Ideal for residential and commercial electrical safety applications.

DSRCBT63100A-AU-RCBO-10kA-3P-54mm-with-Pigtail-Datasheet.pdf (DSRCBT63100A-AU-RCBO-10kA-3P-54mm-with-Pigtail-Datasheet.pdf, 402 Kb) [Download]
