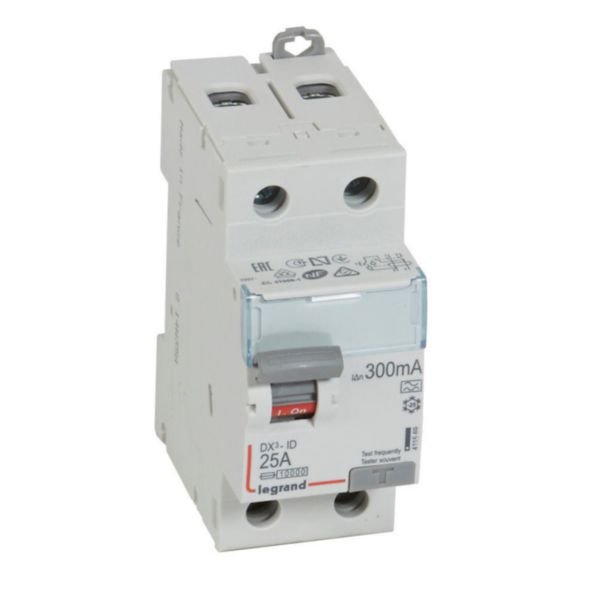

RCD DX³-ID 2P 230V | 25A Rated Current | 300mA Type A | IP20 Protection | @EA of 1 | by Legrand
The RCD DX³-ID 2P 230V is a reliable residual current device designed for AC voltage applications. With a rated current of 25A and a residual operating current of 300mA, it ensures safety in residential and small commercial electrical panels. This Type A RCD features IP20 protection and is easy to install on DIN rails, making it ideal for protecting against electrical faults and leakage currents in various settings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: RCD DX³-ID 2P 230V | 25A Rated Current | 300mA Type A | IP20 Protection | @EA of 1 | by Legrand
Brand: Legrand
SKU: 411569
Alternatively Known As: Residual Current Device, RCD, RCCB, Earth Leakage Circuit Breaker, DX3-ID RCD, Type A RCD
Technical Specifications
- Number of poles: 2
- Rated voltage: 230 V AC
- Rated current: 25 A
- Rated residual operating current: 300 mA
- Rated insulation voltage Ui: 250 V
- Rated impulse withstand voltage Uimp: 4 kV
- Short-circuit breaking capacity (Icw): 10 kA
- Surge current capacity: 0.25 kA
- Frequency: 50 Hz
- Degree of protection: IP20
- Mounting method: DIN rail
- Leakage current type: Type A
- Operating temperature: -25°C to 60°C
- Connectable conductor cross section multi-wired: 0.75-35 mm²
- Connectable conductor cross section solid-core: 0.75-50 mm²
- Degree of impact strength: IK04
- Connection type: Screwed terminal, busbar and cable
- Halogen free: Yes
- Dimensions (H x L x W): 95mm x 78mm x 36mm
- Weight: 0.2 kg
Key Features
- 2-pole residual current device (RCD) for AC voltage 230 V
- Rated current of 25 A and rated residual operating current of 300 mA
- Type A leakage current detection for AC and pulsating DC residual currents
- Short-circuit breaking capacity of 10 kA
- Mounting on DIN rail for easy installation
- IP20 degree of protection
- Halogen free materials
- Screwed terminal connection compatible with busbar and cable
- Operating temperature range from -25°C to 60°C
- Built-in depth of 44 mm and modular width of 2 units
Professional Installation Requirements
- Installation must be performed by a licensed electrician to ensure compliance with electrical safety standards and proper integration into the electrical panel.
Applications
- Residential electrical panels
- Small commercial electrical panels
- Photovoltaic system protection
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- Helps prevent electrical fires and reduces energy waste by detecting leakage currents promptly
- Halogen free construction reduces environmental impact in case of disposal
Warranty Information
Legrand offers a standard 2-year warranty covering manufacturing defects and performance issues.
Available Now
The Legrand RCD DX³-ID 2P 230V 25A 300mA Type A is available for immediate purchase, ideal for residential and small commercial electrical panel protection including photovoltaic systems.
