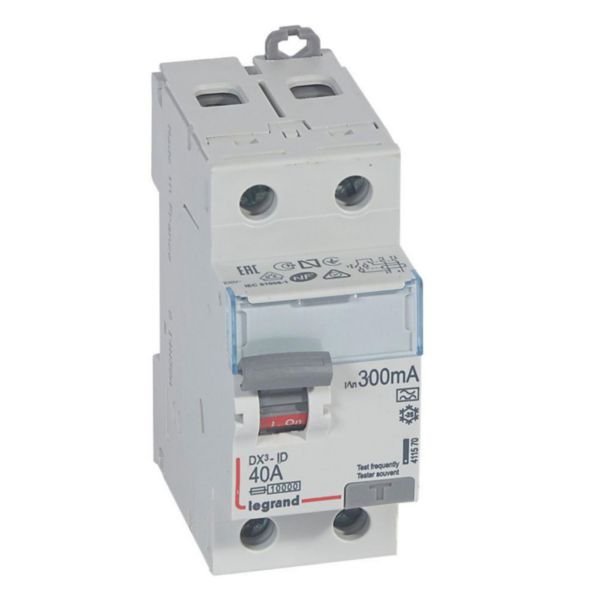

RCD DX³-ID 2P 230V | 40A Rated Current | 300mA Type A Leakage Detection | @EA of 1 | by Legrand
The RCD DX³-ID 2P 230V is a reliable residual current device designed for AC voltage applications. With a rated current of 40A and a 300mA residual operating current, it ensures safety by detecting leakage currents effectively. Ideal for residential and small commercial electrical panels, this device features easy DIN rail mounting and is made from halogen-free materials, promoting both safety and environmental responsibility.
Sign in
Please login to continue to your account.
Product Name/Title: RCD DX³-ID 2P 230V | 40A Rated Current | 300mA Type A Leakage Detection | @EA of 1 | by Legrand
Brand: Legrand
SKU: 411570
Alternatively Known As: Residual Current Device, RCD, RCCB, Earth Leakage Circuit Breaker, DX3-ID RCD, Type A RCD
- Number of poles: 2
- Rated voltage: 230 V AC
- Rated current: 40 A
- Rated residual operating current: 300 mA
- Rated insulation voltage Ui: 250 V
- Rated impulse withstand voltage Uimp: 4 kV
- Short-circuit breaking capacity (Icw): 10 kA
- Surge current capacity: 0.25 kA
- Frequency: 50 Hz
- Degree of protection: IP20
- Mounting method: DIN rail
- Leakage current type: Type A
- Operating temperature: -25°C to 60°C
- Pollution degree: 2
- Connectable conductor cross section multi-wired: 0.75-35 mm²
- Connectable conductor cross section solid-core: 0.75-50 mm²
- Degree of impact strength: IK04
- Halogen free: Yes
- Connection type: Screwed terminal, busbar and cable
- Dimensions (H x L x W): 95mm x 78mm x 36mm
- Weight: 0.2 kg
- 2-pole residual current device (RCD) for AC voltage 230 V
- Rated current of 40 A and rated residual operating current of 300 mA
- Type A leakage current detection for AC and pulsating DC residual currents
- Short-circuit breaking capacity of 10 kA
- Mounting on DIN rail for easy installation
- IP20 degree of protection
- Halogen free materials
- Screwed terminal connection compatible with busbar and cable
- Operating temperature range from -25°C to 60°C
- With interlocking device for enhanced safety
- Installation must be performed by a licensed electrician to ensure compliance with electrical safety standards and proper integration into the electrical panel.
- Residential electrical panels
- Small commercial electrical panels
- Photovoltaic system protection
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
- Helps prevent electrical fires and reduces energy waste by detecting leakage currents promptly
- Supports safe integration of photovoltaic systems, promoting renewable energy use
Legrand offers a standard 2-year warranty covering manufacturing defects and performance issues.
The Legrand RCD DX³-ID 2P 230V 40A 300mA Type A is available for immediate purchase, ideal for residential and small commercial panel protection including photovoltaic systems.
